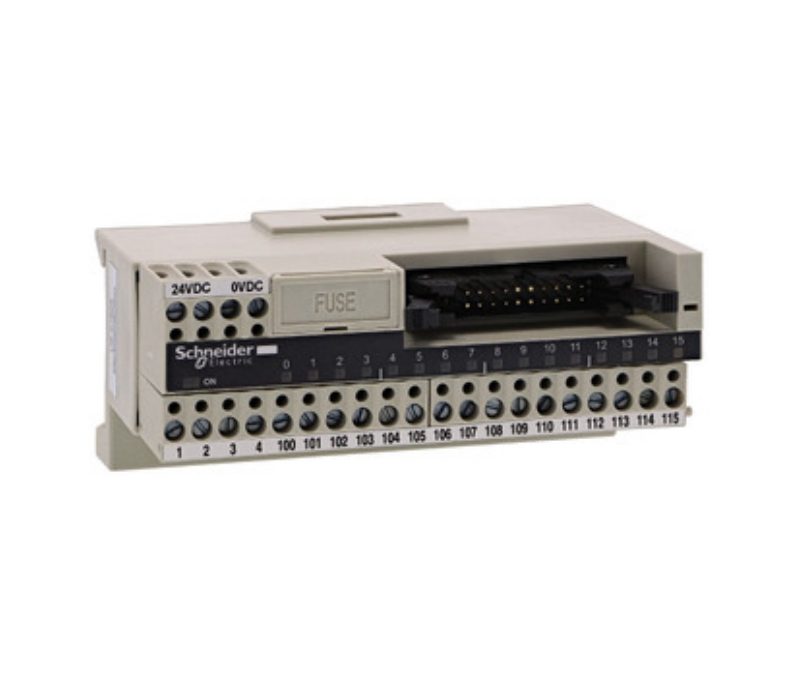

ABE7H16C11 Schneider Control relays
Model: ABE7H16C11 Schneider Control relays
Main Range of Product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon ABE7 |
|---|---|
| Product or Component Type | Passive discrete I/O sub-base |
| Sub-base type | Miniature sub-base |
| [Us] rated supply voltage | 19…30 V IEC 61131-2 |
| Number of channels | 16 |
| Number of terminal per channel | 1 |
| supply voltage type | DC |
|---|---|
| Number of horizontal rows | 1 |
| Status LED | 1 LED per channel (Green) channel status 1 LED (Green) power ON |
| Polarity distribution | No |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Fixing mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Maximum supply current | 1.8 A |
| Current per channel | 0.5 A |
| Maximum current per output common | 1.8 A |
| Voltage drop on power supply fuse | 0.3 V |
| [Ui] Rated Insulation Voltage | 2000 V |
| Installation category | II IEC 60664-1 |
| Tightening torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Net Weight | 0.35 lb(US) (0.16 kg) |
