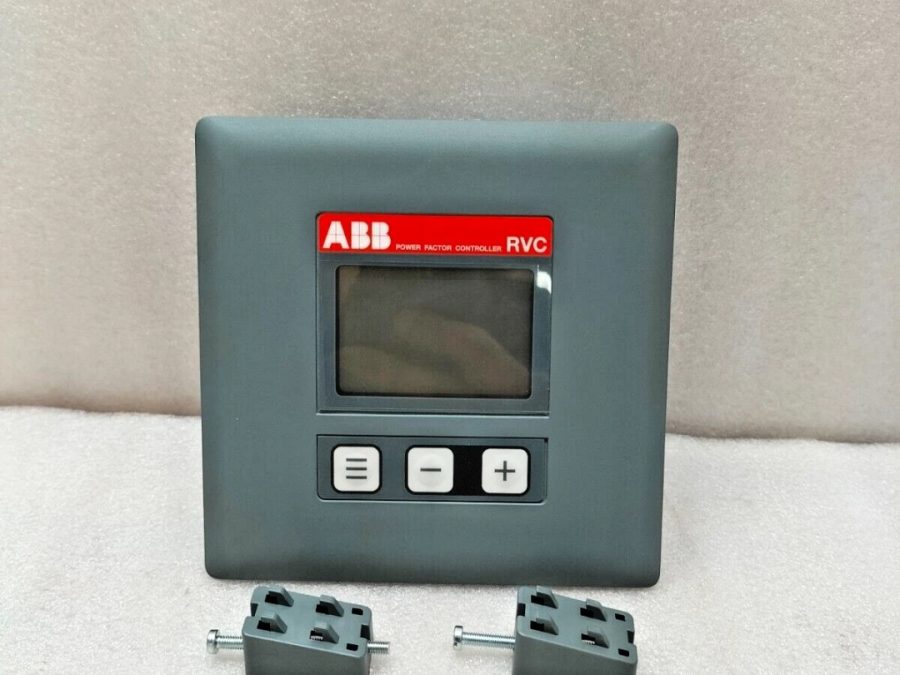

ABB RVC-12 (2GCA294987A0050) Power Factor Controller
Model: ABB RVC-12 (2GCA294987A0050) Power Factor Controller
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | 2GCA294987A0050 (ABB RVC-12) |
| Brand | ABB |
| Product Type | Power Factor Controller |
| Operating Voltage Range | 100 V – 440 V AC; Voltage Tolerance: ±10% |
| Frequency Range | 50/60 Hz ±5% (automatic adjustment) |
| Current Input | 1 A or 5 A RMS; Input Impedance: <0.1 Ω (CT Class 1.0, 10 VA min) |
| Number of Outputs | Programmable up to 12 outputs |
| Output Contact Rating | Max continuous current: 1.5 A; Max peak current: 5 A; Max voltage: 440 V AC |
| Alarm Contact | Normally open; Max continuous current: 5 A; Breaking voltage: 250/440 V AC |
| Power Factor Setting Range | 0.7 inductive to 0.7 capacitive |
| Switching Delay Time | Programmable 1 s – 999 s (independent of reactive load) |
| Switching Modes | Integral, direct, circular, linear |
| Key Features | Auto-commissioning; harmonic resistance; over/undervoltage protection; THDV protection; non-volatile memory |
| Operating Temperature Range | -10 °C to 70 °C |
| Storage Temperature Range | -30 °C to 85 °C |
| Dimensions (H×W×D) | 144 mm × 144 mm × 43 mm |
| Cut-out Dimensions | 138 mm × 138 mm (H×W) |
| Net Weight | 0.4 kg (unpacked) |
| Protection Rating | IP43 (front plate) |
| Power Consumption | Max 8 VA |
| Mounting Type | Vertical panel mounting |
| Standards Compliance | CE marked; CAT III rated |
| Relative Humidity | Max 95% (non-condensing) |
