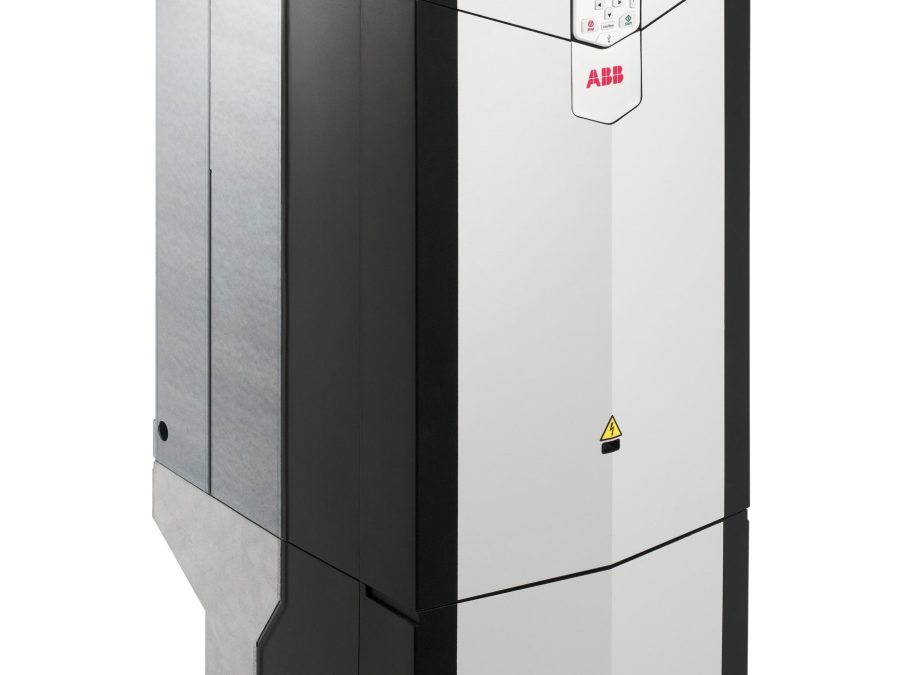

ABB ACS880-01-271A-7+F250+G340+K475+L504+P912+Q951 LV AC industrial wall-mounted single drive
Model: ABB ACS880-01-271A-7+F250+G340+K475+L504+P912+Q951 LV AC industrial wall-mounted single drive
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | ACS880-01-271A-7 |
| Brand | ABB |
| Product Type | Low Voltage Industrial AC Drive (Single Drive) |
| Frame Size | R9 |
| Input Specifications | 3-phase; Voltage: 525-690 V; Frequency: 47.5-63 Hz |
| Output Power (IEC) | Normal (Pn): 250 kW; Light Overload (PLD): 250 kW; Heavy Duty (PHD): 200 kW |
| Output Power (UL) | PLD: 250 Hp |
| Output Current | Normal (In): 271 A; Light Overload (ILD): 257 A; Heavy Duty (IHD): 210 A |
| Apparent Power Output | 324 kV·A |
| Efficiency Level | IE2 |
| Protection Rating | IP21; NEMA Type 1 |
| Mounting Type | Wall-mounted (cabinet installation optional) |
| Dimensions (W×H×D) | 380 mm × 955 mm × 413 mm |
| Net Weight | 95.0 kg (209.439 lb) |
| Package 1 Specifications | 1 case, 485 mm × 654 mm × 1145 mm |
| Operating Temperature Range | -15 °C (min) – 40 °C (max) |
| Max. Installation Altitude | 4000 m |
| Sound Level | 70 dB(A) |
| Communication Protocols | CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO |
| Interfaces | 1×USB, 4×other interfaces, 2×PC connection ports |
| Key Features | Built-in harmonic filter; optional brake chopper/EMC filter/I/O extension; functional safety |
| Country of Origin | Finland |
| WEEE Classification | Category 4 (Large Equipment, >50 cm external dimension) |
| Customs Tariff/HS Code | 85044086; 850440 |
| SCIP Number | 7ba3bad3-28da-4330-8dae-87801eb7cb5a |
| Ordering Details | MOQ: 1 piece; Order multiple: 1 piece; Made to order: Yes; Quote only: No |
| Product ID | 3AUA0000115111 |
| EAN Code | 6438177388661 |
