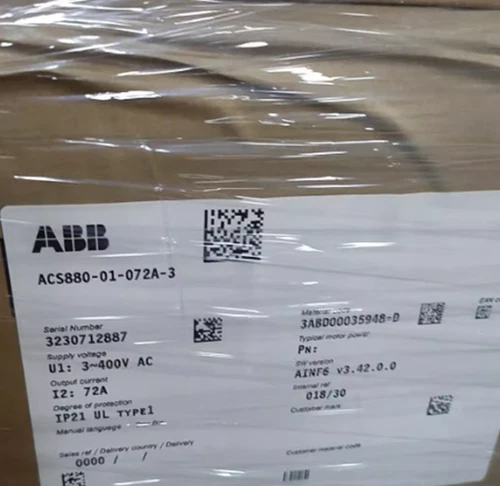

ABB ACS880-01-072A-3 Low Voltage Industrial AC Drive
Model: ABB ACS880-01-072A-3 Low Voltage Industrial AC Drive
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | ACS880-01-072A-3 |
| Brand | ABB |
| Product Type | Low Voltage Industrial AC Drive (Single Drive) |
| Frame Size | R5 |
| Input (3-Phase) | Voltage: 380-415 V; Frequency: 47.5-63 Hz |
| Output Power (IEC) | Normal (Pn): 37 kW; Light Overload (PLD): 37 kW; Heavy Duty (PHD): 30 kW |
| Output Current | Normal (In): 72 A; Light Overload (ILD): 68 A; Heavy Duty (IHD): 61 A |
| Apparent Output Power | 50 kV·A |
| Efficiency Level | IE2 (compliant with IEC61800-9-2) |
| Standby Power Loss | 30 W |
| Protection Rating | IP21; NEMA Type 1 |
| Mounting Type | Wall-mounted (cabinet-mount optional) |
| Dimensions (W×H×D) | 203 mm × 732 mm × 274 mm |
| Net Weight | 22.8 kg (50.27 lb) |
| Operating Temp Max | 40 °C |
| Max Installation Altitude | 4000 m |
| Sound Level | 64 dB(A) |
| Communication Protocols | CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO |
| I/O Interfaces | 2 analog inputs; 2 analog outputs; 6 digital inputs; 2 digital outputs |
| Key Features | Built-in harmonic filter; optional brake chopper/EMC filter; functional safety |
| Country of Origin | Finland |
