ABB

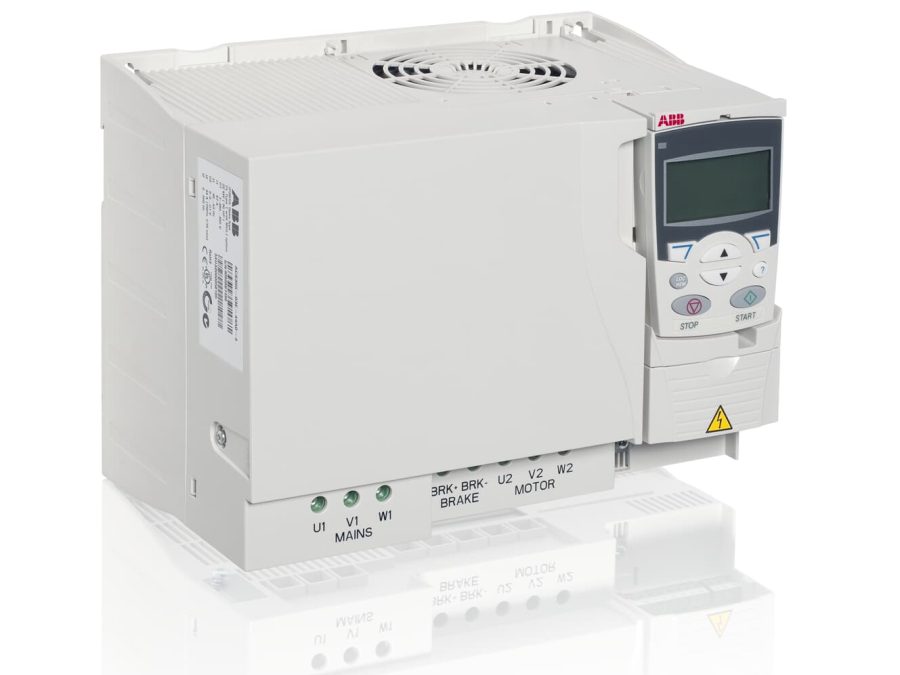

ABB ACS355-03E-31A0-4 Low Voltage AC Machinery Drive
Model: ABB ACS355-03E-31A0-4 Low Voltage AC Machinery Drive
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | ACS355-03E-31A0-4 |
| Brand | ABB |
| Product Type | Low Voltage (LV) AC Machinery Drive Module |
| Application Fields | Food & beverage, material handling, lifting, textile, printing, rubber & plastics, woodworking |
| Input Phase | 3-phase |
| Input Voltage (Uin) | 380…480 V |
| Input Frequency | 50/60 Hz |
| Normal Output Current | 31 A |
| Normal Output Power (Pn) | 15 kW |
| Light Overload Output Power (PLD) | 15 kW |
| Apparent Power Output | 21 kV·A |
| Protection Rating | IP20 |
| Enclosure Type | Open Type (module for cabinet building) |
| Frame Size | R4 |
| Dimensions (W×H×D) | 169 mm × 244 mm × 260 mm |
| Net Weight | 5.4 kg |
| Communication Protocols | Modbus, LON, DeviceNet, PROFIBUS, CAN, EtherNet/IP, PROFINET IO, TCP/IP |
| Communication Interfaces | 1×RS-232, 1×RS-485, 1×Other (industrial Ethernet) |
| Analog I/O | 2×Analog Inputs, 1×Analog Output |
| Digital I/O | 5×Digital Inputs, 1×Digital Output |
| Efficiency Level | IE2 |
| Standby Loss | 10 W |
| Key Features | Safe Torque Off (STO), sequence programming, PC connection support |
| Max Operating Temperature | 40 °C |
| RoHS Compliance | Conforms to EU Directive 2011/65/EU & Amendment 2015/863 (July 22, 2019) |
