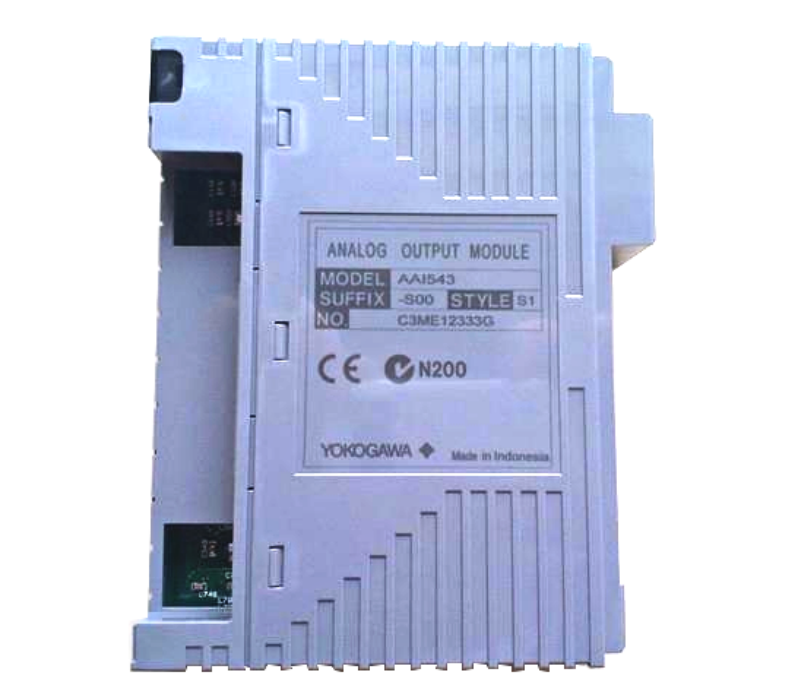

AAI543-H53 Yokogawa Analog Output Module
Model: AAI543-H53 Yokogawa Analog Output Module
Manufacturer :Yokogawa Pro…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- Manufacturer :Yokogawa
- Product No. : AAI543-H53/K4A00
- Product Type : Analog Output Module
- H : With digital communication (HART protocol)
- 5 : Standard switch-over response in redundant configuration with no explosion protection
- 3 : With ISA Standard G3 option and temperature (-20 to 70 °C) option
- K4A00 : With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00]
- Number of output channels : 16, isolated, standard switch-over response in redundant configuration
- Input signal : 4 to 20 mA
- Withstanding voltage : Between output and system: 1500 V AC, for 1 minute
- Allowable load resistance 0 to 750 ?
- Circuit-open detection Less than 0.65 mA
- Accuracy : ±48 µA
- Data update period : 10 ms
- Drift due to ambient temperature change : ±16 µA/10 °C
- Maximum current consumption : 230 mA (5 V DC), 540 mA (24 V DC)
- External communication : Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
- Weight : 0.4 Kg
- Shipping Weight : 1.5 Kg
