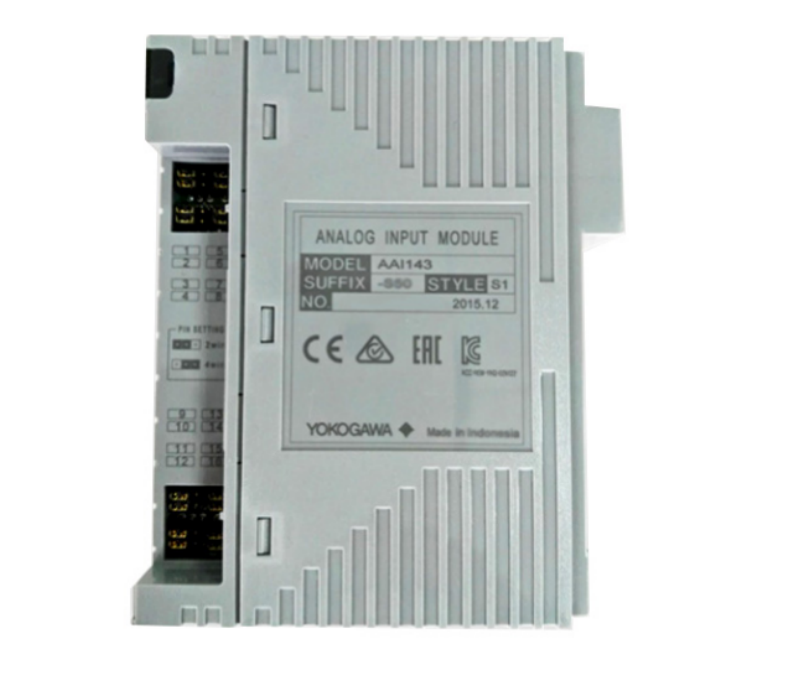

AAI143-H53 Yokogawa AAI143 Analog Input Module
Model: AAI143-H53 Yokogawa AAI143 Analog Input Module
Manufacturer :Yokogawa Pro…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- Manufacturer :Yokogawa
- Product No. : AAI143-H53/K4A00
- Product Type : Analog Input Module
- H : With digital communication (HART protocol)
- 5 : With no explosion protection
- 3 : With ISA Standard G3 option and temperature (-20 to 70 °C) option
- K4A00 : With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00]
- Number of input channels : 16, isolated
- Input signal : 4 to 20 mA
- Allowable input current : 24 mA
- Withstanding voltage : Between input and system: 1500 V AC, for 1 minute
- Input resistance
- Power ON : 270 ? (20 mA) to 350 ? (4 mA)
- Power OFF : 500 k? or larger
- Accuracy : ±16 µA
- Data update period : 10 ms
- Transmitter power supply : 19.0 V or higher (at 20 mA) 25.5 V or less (at 0 mA) (output current limit: 25 mA)
- Setting of 2-wire or 4-wire transmitter : For each channel by setting pin
- Drift due to ambient temperature change : ±16 µA/10 °C
- Maximum current consumption : 230 mA (5 V DC), 540 mA (24 V DC)
- External communication : Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
- Weight : 0.3 Kg
- Shipping Weight : 1.5 Kg
