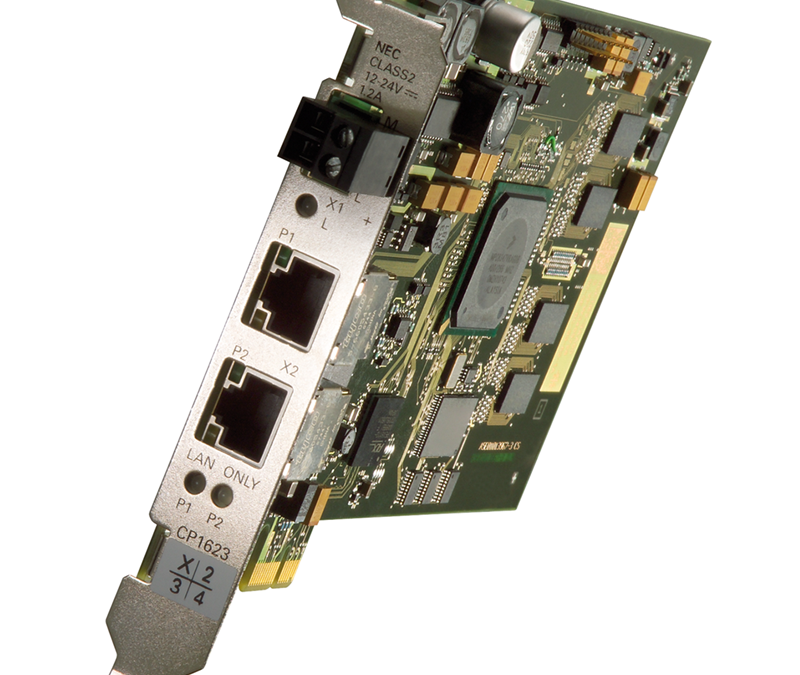

A5E01068140 Siemens SIMATIC CP1623 Network Card 6GK1162-3AA00

CP 1623

Communications processor CP 1623 PCI Express X1 (3, 3 V/12 V) for connection

to Industrial Ethernet (10/100/1000 Mbit/s) with 2-port switch (RJ45) can be

uploaded onto device HARDNET-IE S7 and S7-REDCONNECT operating system

support see SIMATIC NET software released as of SIMATIC NET CD V7.0 HF1.

transfer rate

transfer rate

10 Mbit/s, 100 Mbit/s, 1000 Mbit/s

interfaces

number of electrical connections

• at the 1st interface / according to Industrial Ethernet

2

• for power supply

1

type of electrical connection

• at the 1st interface / according to Industrial Ethernet

RJ45 port

• for power supply

2-pole terminal block

supply voltage, current consumption, power loss

type of voltage / of the supply voltage

DC

type of voltage supply / optional external power supply

Yes

supply voltage

• 1 / from backplane bus

3.3 V

• 2 / from backplane bus

12 V

• external

24 V

• external

10.5 … 32 V

relative symmetrical tolerance / at DC

• at 3.3 V

9 %

• at 5 V

5 %

• at 12 V

8 %

• at 24 V

33 %

consumed current

• 1 / from backplane bus / at DC / maximum

0.85 A

• 2 / from backplane bus / at DC / maximum

0.4 A

• from external supply voltage / at DC / at 12 V / maximum

0.55 A

• from external supply voltage / at DC / at 24 V / maximum

0.3 A

power loss [W]

7.6 W

power loss [W] / in switch mode / maximum

7.2 W

ambient conditions

ambient temperature

• during operation

5 … 55 °C

• during storage

-20 … +60 °C

• during transport

-20 … +60 °C

relative humidity / at 25 °C / without condensation / during

operation / maximum

95 %

protection class IP

IP00

design, dimensions and weights

module format

PCI Express x1 (half length)

6GK11623AA00

Page 1/3

1/9/2024

Subject to change without notice

© Copyright Siemenswidth

18 mm

height

111 mm

depth

167 mm

net weight

124 g
