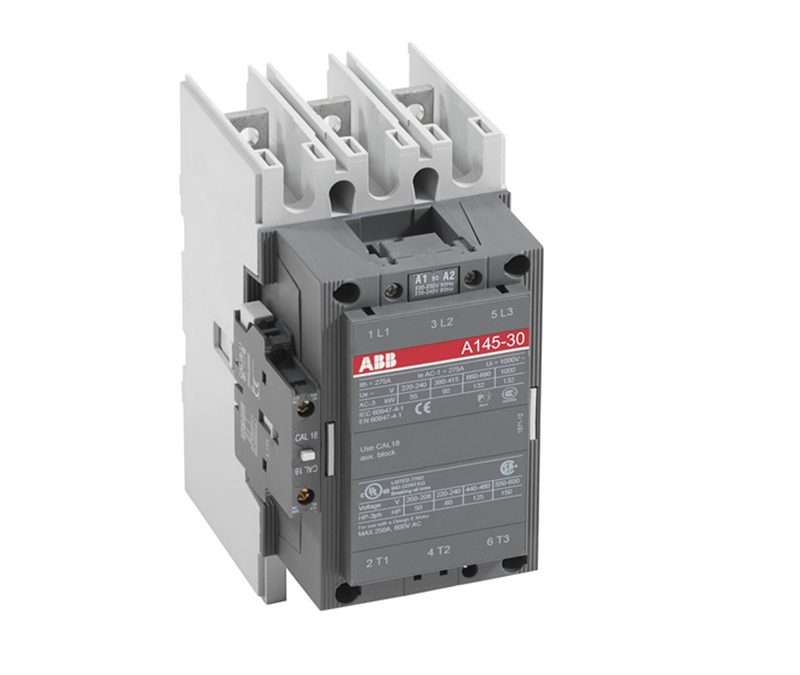

A145-30 ABB 220-230V 50Hz / 230-240V 60Hz Contactor
Model: A145-30 ABB 220-230V 50Hz / 230-240V 60Hz Contactor
Dimensions Product Net Wid…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Dimensions
Product Net Width:
111.5 mm
Product Net Depth / Length:
160 mm
Product Net Height:
196 mm
Product Net Weight:
2.9 kg
Technical
Number of Main Contacts NO:
3
Number of Main Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Number of Auxiliary Contacts NC:
1
Rated Operational Voltage:
Main Circuit 690 V
Rated Frequency (f):
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith):
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (Ie):
(1000 V) 40 °C 180 A
(1000 V) 55 °C 180 A
(1000 V) 70 °C 180 A
(690 V) 40 °C 250 A
(690 V) 55 °C 230 A
(690 V) 70 °C 180 A
Rated Operational Current AC-3 (Ie):
(415 V) 55 °C 145 A
(440 V) 55 °C 145 A
(500 V) 55 °C 145 A
(690 V) 55 °C 120 A
(1000 V) 55 °C 80 A
(380 / 400 V) 55 °C 145 A
(220 / 230 / 240 V) 55 °C 145
Rated Operational Power AC-3 (Pe):
(415 V) 75 kW
(440 V) 75 kW
(500 V) 90 kW
(690 V) 110 kW
(380 / 400 V) 75 kW
(220 / 230 / 240 V) 45 kW
Rated Breaking Capacity AC-3:
8 x Ie AC-3
Rated Making Capacity AC-3:
10 x Ie AC-3
Short-Circuit Protective Devices:
gG Type Fuses 315 A
Rated Short-time Withstand Current Low Voltage (Icw):
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1200 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 280 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1800 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 800 A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1200 A
Maximum Electrical Switching Frequency:
(AC-1) 300 cycles per hour
(AC-2 / AC-4) 150 cycles per hour
(AC-3) 300 cycles per hour
Rated Operational Current DC-1 (Ie):
(110 V) 2 Poles in Series, 40 °C 250 A
(220 V) 3 Poles in Series, 40 °C 250 A
Rated Operational Current DC-3 (Ie):
(110 V) 2 Poles in Series, 40 °C 250 A
(220 V) 3 Poles in Series, 40 °C 250 A
Rated Operational Current DC-5 (Ie):
(110 V) 2 Poles in Series, 40 °C 250 A
(220 V) 3 Poles in Series, 40 °C 250 A
Rated Insulation Voltage (Ui):
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp):
Main Circuit 8 kV
Mechanical Durability:
5 million
Maximum Mechanical Switching Frequency:
3600 cycles per hour
Coil Operating Limits:
(acc. to IEC 60947-4-1) 0.85 x Uc Min. … 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc):
50 Hz 220 … 230 V
60 Hz 230 … 240 V
Coil Consumption:
Holding at Max. Rated Control Circuit Voltage 50 Hz 35 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 40 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 550 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 600 V·A
Operate Time:
Between Coil De-energization and NC Contact Closing 5 … 10 ms
Between Coil De-energization and NO Contact Opening 9 … 13 ms
Between Coil Energization and NC Contact Opening 8 … 22 ms
Between Coil Energization and NO Contact Closing 13 … 27 ms
Connecting Capacity Main Circuit:
Bar 24 mm²
Rigid Al-Cable 1 x 25 … 150 mm²
Rigid Cu-Cable 1 x 6 … 185 mm²
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1x 0.75 … 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 … 2.5 mm²
Flexible 2×0.75 … 2.5 mm²
Solid 2 x 1 … 4 mm²
Stranded 2 x 1 …. 4 mm²
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Connecting Terminals (delivered in open position) Main Poles:
Flat type c/w screws and bolts
Terminal Type:
Main Circuit: Bars
Technical UL/CSA
NEMA Size:
4
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
General Use Rating UL/CSA:
(600 V AC) 230 A
Horsepower Rating UL/CSA:
(200 V AC) Three Phase 40 hp
(208 V AC) Three Phase 40 hp
(220 … 240 V AC) Three Phase 50 hp
(440 … 480 V AC) Three Phase 100 hp
(550 … 600 V AC) Three Phase 125 hp
Environmental
Ambient Air Temperature:
Close to Contactor Fitted with Thermal O/L Relay (0.85 … 1.1 Uc) -25 … 50 °C
Close to Contactor without Thermal O/L Relay (0.85 … 1.1 Uc) -40 … 70 °C
Close to Contactor for Storage -40 … 70 °C
Maximum Operating Altitude Permissible:
Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27:
Shock Direction: A 5 g
Shock Direction: B1 5 g
Shock Direction: B2 5 g
Shock Direction: C1 5 g
Shock Direction: C2 5 g
Material Compliance
REACH Declaration:
2CMT2021-006202
RoHS Information:
2CMT2021-006277
RoHS Status:
Following EU Directive 2011/65/EU
Toxic Substances Control Act – TSCA:
2CMT2023-006525
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
BV Certificate:
09826/C0 BV
CB Certificate:
SE-69488
CQC Certificate:
CQC2002010304011010
CQC2009010304353525
Declaration of Conformity – CCC:
2020980304001633
2020980304001040
Declaration of Conformity – CE:
2CMT2015-005436
Declaration of Conformity – UKCA:
2CMT2020-006118
DNV Certificate:
DNV_E-12191
GL Certificate:
GL_15529-00HH
LOVAG Certificate:
IT00050
LR Certificate:
LR_12-70003
RINA Certificate:
ELE060313XG/001
RMRS Certificate:
RMRS_12-03683-315
Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
232 mm
Package Level 1 Height:
167 mm
Package Level 1 Gross Weight:
3.5 kg
Package Level 1 EAN:
7320500203286
Classifications
Object Classification Code:
Q
ETIM 4:
EC000066 – Magnet contactor, AC-switching
ETIM 5:
EC000066 – Magnet contactor, AC-switching
ETIM 6:
EC000066 – Power contactor, AC switching
ETIM 7:
EC000066 – Power contactor, AC switching
ETIM 8:
EC000066 – Power contactor, AC switching
eClass:
V11.0 : 27371003
UNSPSC:
39121529
IDEA Granular Category Code (IGCC):
4755 >> Contactors
E-Number (Finland):
3709327
E-Number (Norway):
4115096
