8CVE28000HC00.00-1 B&R Programmable Logic Controllers

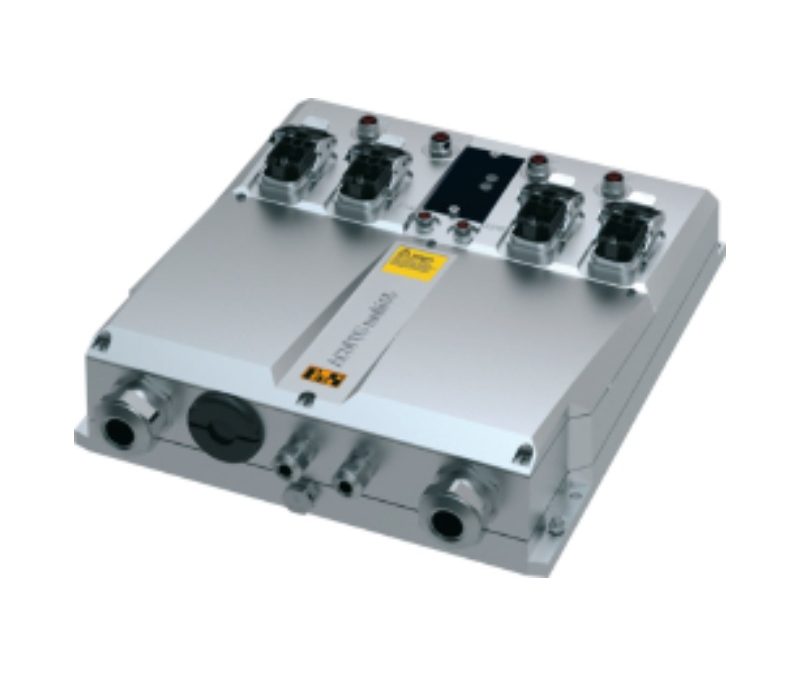

Model: 8CVE28000HC00.00-1 B&R Programmable Logic Controllers
Mechanical properties Dime…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Mechanical properties
| Dimensions | |
| Width | 293 mm |
| Height | 328 mm |
| Depth | 80 mm |
| Weight | 7 kg |
DC bus connection
| Voltage | |
| Nominal | 750 VDC |
| Variant | |
| DC+, DC-, PE | Cage clamp terminal block |
| Shield connection | Yes (via cable gland) |
| Terminal connection cross sections | |
| Flexible and fine-stranded wires | |
| With wire end sleeves | 0.25 to 10 mm² |
| Approbation data | |
| UL/C-UL-US | 24 to 8 |
| CSA | 24 to 8 |
| Terminal cross sections (cable diameter) | 14 to 21 mm (M32 cable grommet) |
| Max. line length | 30 m |
24 VDC power supply
| Quantity | 2 |
| Input voltage | 24 VDC -25% / +20% |
| Max. power consumption | In preparation |
| Variant | |
| 24 VDC, COM, PE | Cage clamp terminal block |
| Shield connection | No |
| Terminal connection cross sections | |
| Flexible and fine-stranded wires | |
| With wire end sleeves | 0.25 to 10 mm² |
| Approbation data | |
| UL/C-UL-US | 24 to 8 |
| CSA | 24 to 8 |
| Terminal cross sections (cable diameter) | 14 to 21 mm (M32 cable grommet) |
| Max. line length | 30 m |
Hybrid cable outlets
| Quantity | 4 (each with DC bus, 24 VDC, 2x enable, POWERLINK) |
| DC+ and DC- fuse protection | |
| Type | Melting fuse conforming to UL/CSA, ø 10 x 38 mm |
| Tripping characteristic | Fast-acting |
| Rated current of fuse depending on ambient temperature | |
| 40°C | In preparation |
| 60°C | 20 A |
| 24 VDC fuse protection | |
| Type | Blade fuses conforming to UL/CSA |
| Tripping characteristic | Fast-acting |
| Rated current of fuse depending on ambient temperature | |
| 40°C | In preparation |
| 60°C | 15 A |
| Continuous power depending on rated current of fuse | |
| DC+ and DC- | |
| 20 A | 10.1 kW |
| 24 VDC | |
| 15 A | 240 W |
| Continuous current depending on rated current of fuse | |
| DC+ and DC- | |
| 20 A | 13.5 Aeff |
| 24 VDC | |
| 15 A | 10.1 A |
| Continuous current of enable outputs | Max. 500 mA |
| Reduction of continuous power depending on installation elevation | |
| Starting at 500 m above sea level | 10% per 1,000 m |
24 VDC output
| Quantity | 2 |
| Output voltage | Depends on the 24 VDC power supply |
| Continuous current | Max. 8 A (max. 4 A per pin) |
| Fuse protection per pin | |
| Type | Blade fuses conforming to UL/CSA |
| Tripping characteristic | Fast-acting |
| Rated current of fuse depending on ambient temperature | |
| 40°C | 5 A |
| 60°C | 7.5 A |
