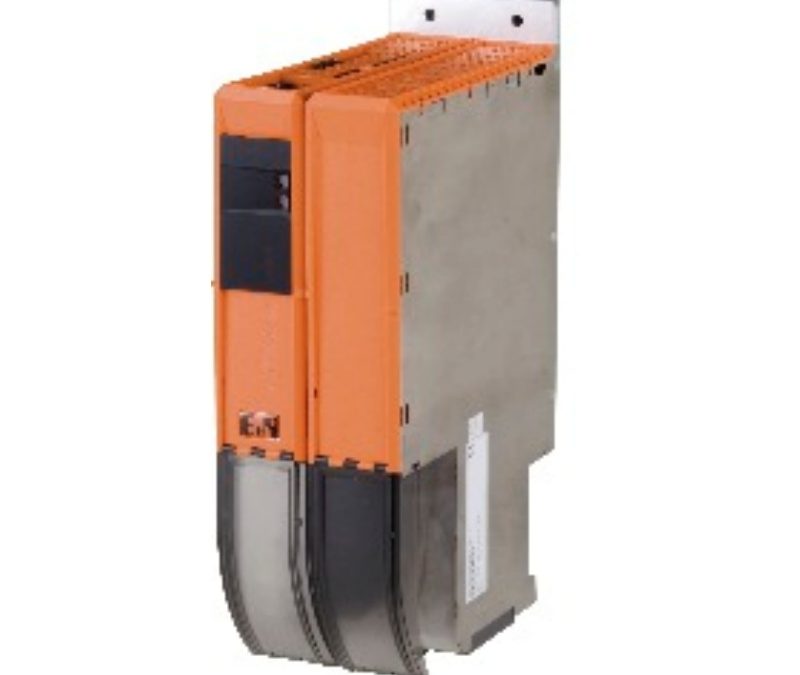

8BVI0220HCS0.000-1 B&R Programmable Logic Controllers & components
Model: 8BVI0220HCS0.000-1 B&R Programmable Logic Controllers & components
DC bus connection Voltage …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
DC bus connection
| Voltage | |
| Nominal | 750 VDC |
| Continuous power consumption | 16.2 kW |
| Power dissipation depending on switching frequency | |
| Switching frequency 5 kHz | [0.13 * IM² + 5.5 * IM + 40] W |
| Switching frequency 10 kHz | [0.43 * IM² + 3.7 * IM + 110] W |
| Switching frequency 20 kHz | [1.4 * IM² + 1.97 * IM + 230] W |
| DC bus capacitance | 495 µF |
| Variant | ACOPOSmulti backplane |
Mechanical properties
| Dimensions | |
| Width | 106.5 mm |
| Height | 317 mm |
| Depth | |
| Cold plate | 212 mm |
| Pass-through mounting | 209 mm |
| Weight | Approx. 3.9 kg |
nable inputs
| Quantity | 2 |
| Circuit | Sink |
| Electrical isolation | |
| Input – Inverter module | Yes |
| Input – Input | Yes |
| Input voltage | |
| Nominal | 24 VDC |
| Maximum | 30 VDC |
| Input current at nominal voltage | Approx. 30 mA |
| Switching threshold | |
| Low | <5 V |
| High | >15 V |
24 VDC power supply
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 32.9 µF |
| Max. power consumption | 20 W + PSLOT1 + PSLOT2 + P24 V Out + PHoldingBrake |
| Variant | ACOPOSmulti backplane |
24 VDC output
| Quantity | 2 |
| Output voltage | |
| DC bus voltage (UDC): 260 to 315 VDC | 25 VDC * (UDC/315) |
| DC bus voltage (UDC): 315 to 800 VDC | 24 VDC ±6% |
| Fuse protection | 250 mA (slow-blow) electronic, automatic reset |
