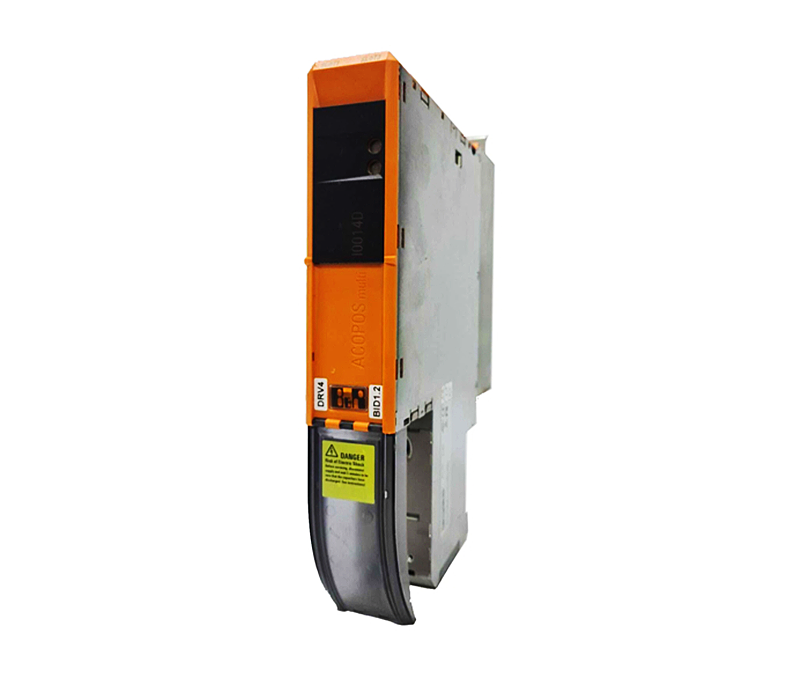

8BVI0055HWD0.000-1 B&R ACOPOSmulti Inverter Module
Model: 8BVI0055HWD0.000-1 B&R ACOPOSmulti Inverter Module
Manufacturers B&R Mod…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
B&R
Model(s)
B&R drive
Product Description
| Quantity | 2 |
| Continuous power per motor connection | 5.5 kW |
| Continuous current per motor connection | 7.6 Aeff |
| Reduction of continuous current depending on switching frequency and mounting type | |
| Switching frequency 5 kHz | |
| Cold plate mounting | 0.72 A/K (starting at 56°C) |
| Pass-through mounting | No reduction |
| Switching frequency 10 kHz | |
| Cold plate mounting | 0.28 A/K (starting at 43°C) |
| Pass-through mounting | 0.17 A/K (starting at 23°C) |
| Switching frequency 20 kHz | |
| Cold plate mounting | 0.13 A/K (starting at 3°C) |
| Pass-through mounting | 0.12 A/K (starting at -21°C) |
| Reduction of continuous current depending on installation elevation | |
| Starting at 500 m above sea level | 0.76 Aeff per 1000 m |
| Peak current per motor connection | 18.9 Aeff |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies | 5 / 10 / 20 kHz |
| Insulation stress of the connected motor per IEC TS 60034-25:2004 | Limit value curve A |
| Protective measures | |
| Overload protection | Yes |
| Short-circuit and ground fault protection | Yes |
| Dimensions | |
| Width | 53 mm |
| Height | 317 mm |
| Depth | |
| Cold plate | 212 mm |
| Pass-through mounting | 209 mm |
| Weight | Approx. 2.3 kg |
| Module width | 1 |
