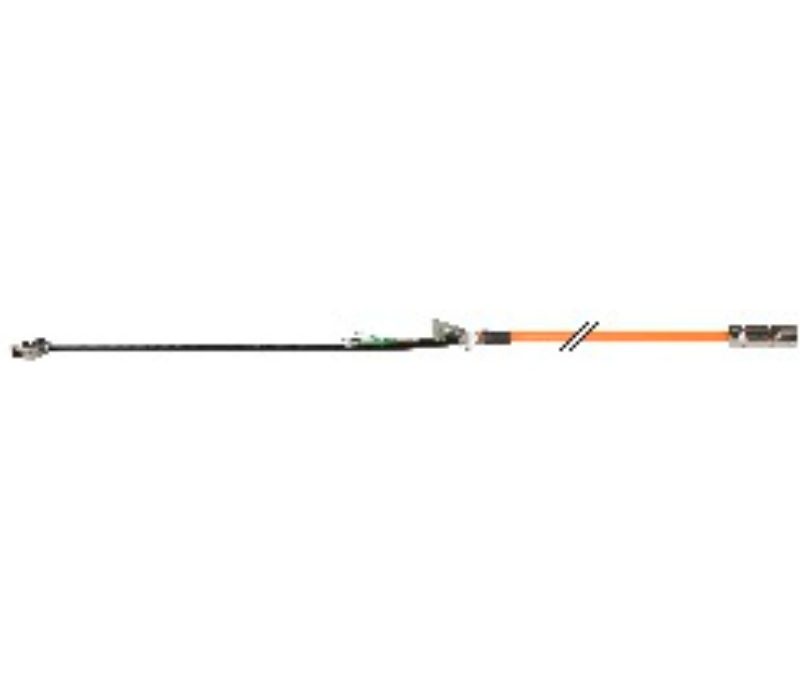

8BCH0012.1111A-0 B&R Servo Motor Power
Model: 8BCH0012.1111A-0 B&R Servo Motor Power
General information Cable …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
General information
| Cable cross section | 4x 1.5 mm² + 2x 0.75 mm² + (2x 1x 0.30 mm² + 2x 2x 0.15 mm²) |
| Durability | Oil resistance per EN 60811-2-1 |
| Certification | UL AWM style 21223, 80°C, 1000 V and CSA C22.2 no. 210 I/II A/B FT1 |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E225616 Power conversion equipment |
Cable construction
| Power lines | |
| Quantity | 4 |
| Wire insulation | PP |
| Wire colors | Black, brown, blue, yellow/green |
| Variant | Copper stranded wire |
| Cross section | 1.5 mm² |
| Shield | No |
| Stranding | No |
| Supply lines | |
| Quantity | 2 |
| Wire insulation | PP |
| Wire colors | White/Blue, white/green |
| Variant | Tinned copper stranded wire |
| Cross section | 0.75 mm² |
Mechanical properties
| Dimensions | |
| Length | 12 m |
| Diameter | 13 mm ±0.4 mm |
| Bend radius | |
| Single bend | >40 mm |
| Moving | ≥100 mm |
| Drag chain data | |
| Acceleration | Max. 50 m/s² (depends on the length of the travel path) |
| Flex cycles | ≥3,000,000 |
| Speed | Max. 300 m/min |
| Weight | 2.9 kg |
