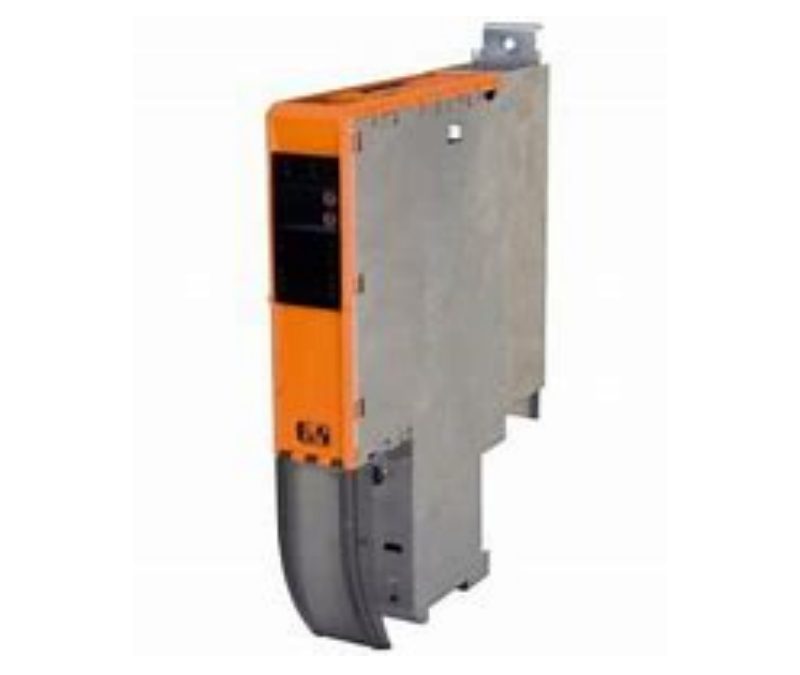

8B0P0110HW00.000-1 B&R power supply
Model: 8B0P0110HW00.000-1 B&R power supply
Voltage Nominal 294 to 679…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Voltage | |
| Nominal | 294 to 679 VDC |
| Continuous power | 4 kW |
| Reduction of continuous power depending on mains input voltage | |
| Mains input voltage <3x 400 VAC | 10 W/V * (400 V – Mains input voltage) |
| Reduction of continuous power depending on installation elevation | |
| Starting at 500 m above sea level | 0.4 kW per 1000 m |
| Reduction of continuous power depending on cooling method | No reduction |
| Peak power output (supply) | 12 kW |
| DC bus capacitance | 330 µF |
| Protective measures | |
| Overload protection | Yes |
| Short-circuit and ground fault protection | No |
| Variant | ACOPOSmulti backplane |
| Input voltage | |
| Minimum | 18 VDC |
| Nominal | 24 VDC |
| Maximum | 30 VDC |
| 24 VDC internal system power supply | 25 VDC ±1.6% (regulated) |
| Switch-on threshold | 16 V |
| Max. continuous current | 4.0 A |
| Status indicators | 24 V LED |
| Undervoltage detection | Yes |
| Overvoltage detection | Yes |
| Protective measures | |
| No-load proof | Yes |
| Overload-proof | Yes |
| Short-circuit proof | Yes |
| Overtemperature protection | Yes |
| Variant | |
| 24 VDC In, COM | Connector |
| Terminal connection cross section of input “24 VDC In” | |
| Flexible and fine-stranded wires | |
| With wire end sleeves | 0.2 to 2.5 mm² |
| Approbation data | |
| UL/C-UL-US | 30 to 12 AWG |
| CSA | 22 to 12 AWG |
| Width | 53.5 mm |
| Height | 317 mm |
| Depth | |
| Wall mounting | 263 mm |
| Weight | 3.5 kg |
