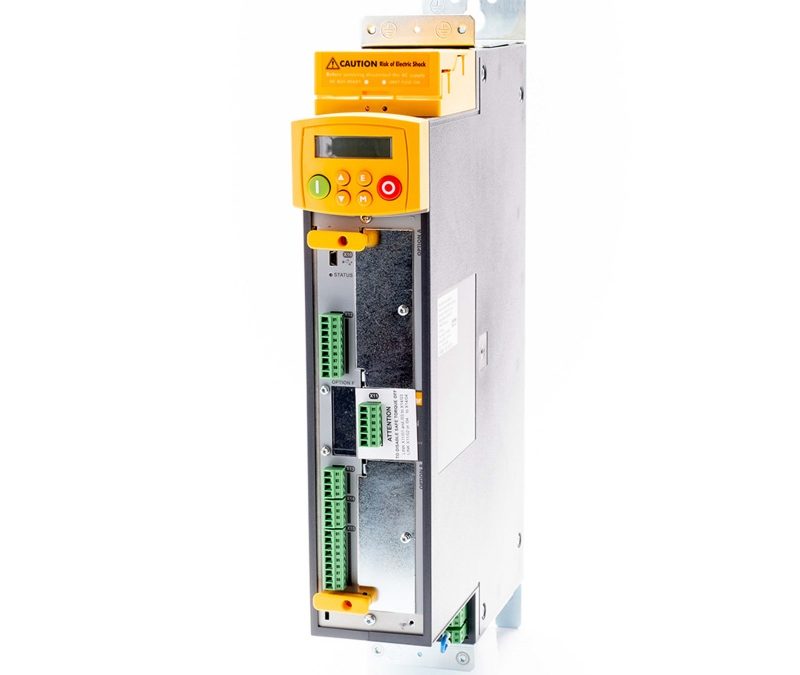

890CD-532120B0-000-1A000 Parker AC Variable Frequency Drives
Model: 890CD-532120B0-000-1A000 Parker AC Variable Frequency Drives
Technical Specifications I…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical Specifications
| Input Voltage: | 560/705VDC |
| Brand: | Parker |
| Aux Supply Input Voltage: | None |
| Output kW Rating (Normal Duty): | 5.5 |
| Product Type: | AC Drive |
| Series: | AC890CD Multi-Axis Drive Module |
| Drive Axis Type: | Single Axis Technology, Multi-Axis Technology |
| Brake Switch Option: | No |
| Product Series: | AC890 |
| Special Options: | None |
| Input Voltage: | 560 VDC, 705 VDC |
| Output Power: | 5.5 kW |
| Power | 5.5 kW |
| Voltage Input | 320-705VDC (Common Bus) |
| Drive Format | Single Axis Technology, Multi Axis Technology |
| Rated Output Current | 12.0A Constant Torque Rating (9.00A Servo Mode) |
| Overload Ratings | Heavy Duty Rating (Constant Torque) : 150% for 60s, Normal Duty Rating (Variable Torque) : 110% for 60s, Servo Mode Rating (Frames B-D) : 200% for 4s |
| Supported Motor Types | Brushless Servo, Frameless Servo, Induction, Spindle, Torque, PMAC |
| Filter | Build-in EMC Filter |
| Operating temparature | 0 °C to +45 °C (derate up to 50 °C max) |
| Size | Frame B; 433.6×72.4×258.5 (HxWxD) |
| Weight | 6 kg |
| Protection class | IP20 |
