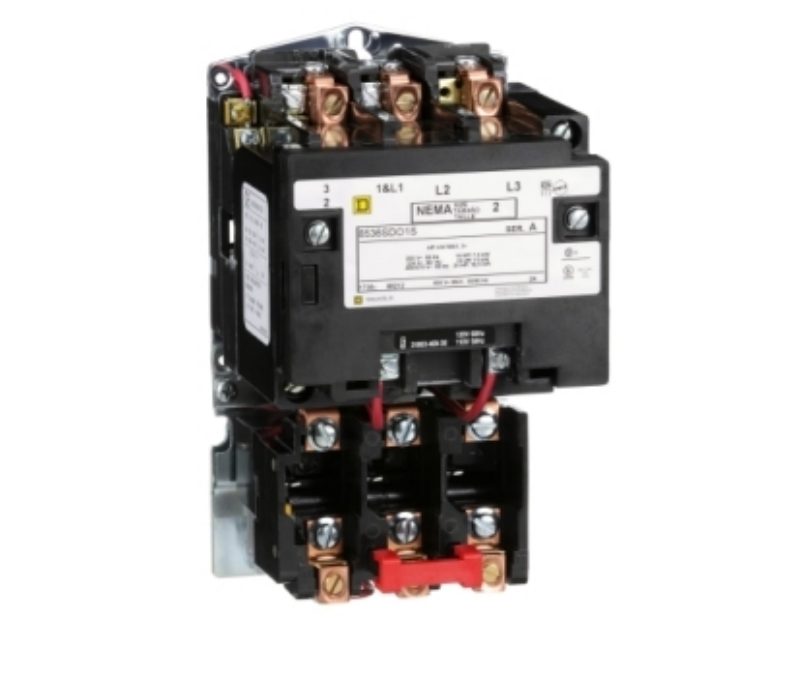

8536SDO1V02S Schneider Amp Motor Starter

Schneider Schneider

Model: 8536SDO1V02S Schneider Amp Motor Starter

Main Product Type Motor st…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Main
Product Type	Motor starter
Product Range	S
Starter Type	Non reversing

Complementary
NEMA Size	2
Rated Current	45 A
Number of Poles	3P
Maximum Voltage Rating	600 V AC
Phase	3 phase
Type of Overload	Melting alloy 3
Horsepower Rating	10 HP 200 V AC 15 HP 230 V AC 25 HP 460 V AC 25 HP 575 V AC
SCCR	Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
Coil Voltage	110 V AC 50 Hz 120 V AC 60 Hz
Control Circuit Type	Separate control circuit
Control Units	No control units
Pilot Light	Without pilot light
Auxiliary Contacts	Without
Terminal Type	Screw clamp terminals
Height	7.81 in (198.37 mm)
Width	4.31 in (109.47 mm)
Depth	4.94 in (125.48 mm)

Environment
Enclosure Type	Not rated (open device)
Certifications	UL Listed CSA NEMA

Ordering and shipping details
Category	US10CP121192
Discount Schedule	0CP1
GTIN	785901882121
Returnability	Yes
Country of origin	MX

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.100 in (18.034 cm)
Package 1 Width	6.400 in (16.256 cm)
Package 1 Length	9.300 in (23.622 cm)
Package 1 Weight	6.700 lb(US) (3.039 kg)
Unit Type of Package 2	PAL
Number of Units in Package 2	104
Package 2 Height	40.0000000000 in (101.6 cm)
Package 2 Width	40.0000000000 in (101.6 cm)
Package 2 Length	48.0000000000 in (121.92 cm)
Package 2 Weight	706.0001 lb(US) (320.236 kg)

Contractual warranty
Warranty	18 months
