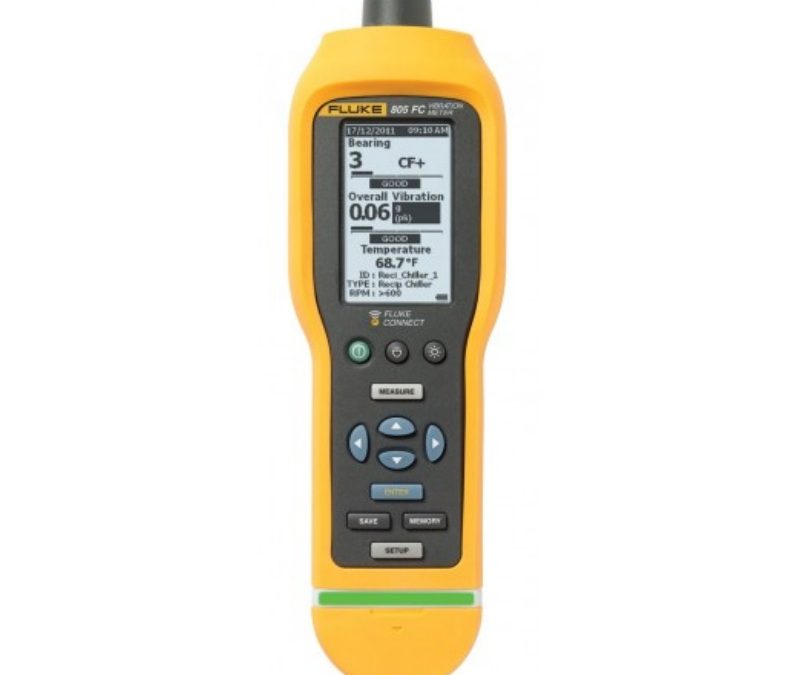

805FC Fluke FC Vibration Meter
Model: 805FC Fluke FC Vibration Meter
Fluke 805FC Specifications…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Fluke 805FC Specifications
| Low Frequency Range (overall measurement) | 10 to 1000 Hz |
| High Frequency Range (CF+ measurement) | 4000 to 20,000 Hz |
| Severity Levels | Good, satisfactory, unsatisfactory, unacceptable |
| Vibration Limit | 50 g peak (100 g peak-peak) |
| A/D Converter | 16-bit |
| Signal to Noise Ratio | 80 dB |
| Sampling Rate | Low frequency: 20,000 Hz High frequency: 80,000 Hz |
| Real Time Clock Backup | Coin battery |
| Sensor | |
| Sensitivity | 100 mV g ±10% |
| Measurement Range | 0.01 to 50 g |
| Low Frequency Range (overall measurement) | 10 to 1000 Hz |
| High Frequency Range | 4000 to 20,000 Hz |
| Resolution | 0.01 g |
| Accuracy | At 100 Hz ±5% of measured value |
| Amplitude Units | |
| Acceleration | g, m/sec2 |
| Velocity | in/sec, mm/sec |
| Displacement | mils, mm |
| IR Temperature Measurements | |
| Range | -20 to 200°C (-4 to 392°F) |
| Accuracy | ±2°C (4°F) |
| Focal Length | Fixed, at ~3.8 cm (1.5″) |
| External Sensor | |
| Frequency Range | 10 to 1000 Hz |
| Bias Voltage (to supply power) |
20to 22 V DC |
| Bias Current (to supply power) | Maximum 5 mA |
