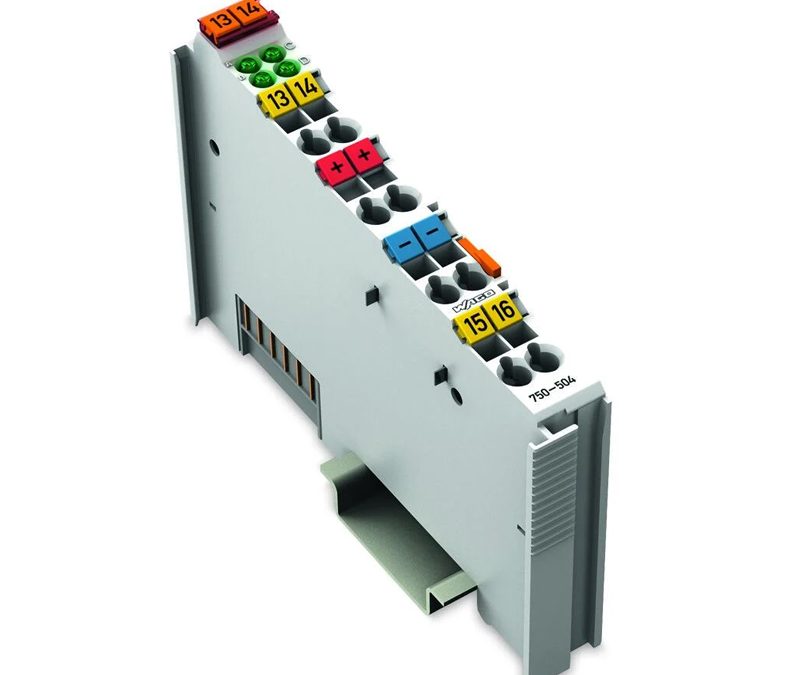

750-504 WAGO 4-channel digital output
Model: 750-504 WAGO 4-channel digital output
Number of digital outputs …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Number of digital outputs 4
Total number of channels (module) 4
Signal type Digital
Signal type (voltage) 24 VDC
Actuator connection 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other actuators.
Output characteristic high-side switching
Output current per channel 0.5A
Output current short-circuit-protected
Switching frequency (max.) 1 kHz
Load type Resistive, inductive, lamp load
Inductive load switch-off energy dissipation (max.) 0.3J
Output data width (internal) max. 4Bit
Supply voltage (system) 5 VDC; via data contacts
Current consumption (5 V system supply) 10mA
Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (supply voltage field side only) via spring contact)
Current consumption, field supply (module with no external load) 30mA
Isolation 500 V system/field
Indicators LED (A-D) green: Status DO 1 … DO 4
Number of incoming power jumper contacts 2
Number of outgoing power jumper contacts 2
Current carrying capacity (power jumper contacts) 10A
