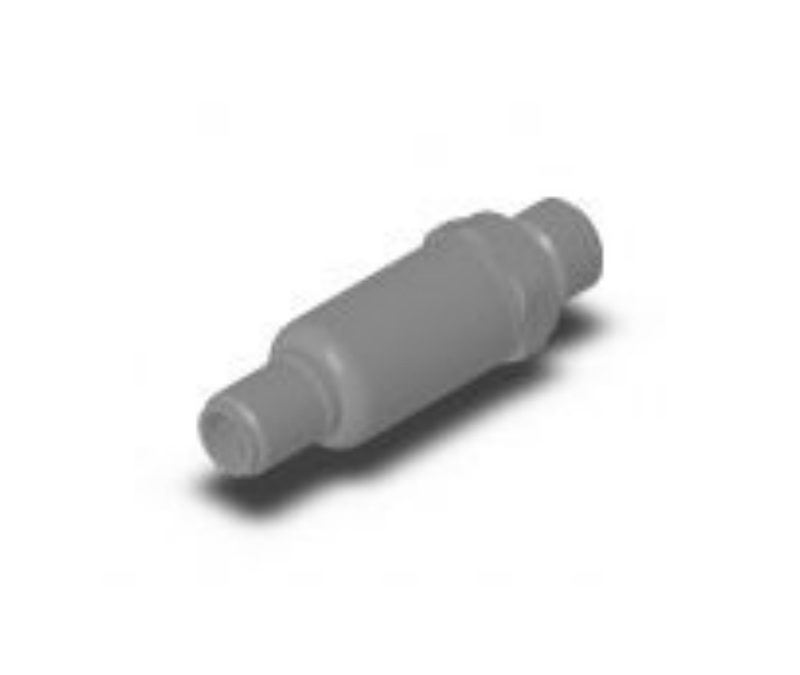

7446-A-040-000 HDA Hydraulic Pressure Sensor / Switch

OTHER OTHER

Model: 7446-A-040-000 HDA Hydraulic Pressure Sensor / Switch

Technical data Print data…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Technical data

More Information
Approval	UL approval
Electrical connection	M12x1 / 4p
Mechanical connection	G1/4 A ISO 1179-2 / external
Output signal	4 to 20mA (2 conductors)
Accuracy	1.00% max = 0.5% typ.
Pressure range max value	40
Pressure range min value	0
Pressure unit	BAR
Type of pressure	Relative

Data Sheet

Product Type: Pressure Transmitter
Product Key: HDA 7446-A-400-000
HS-Code: 90262020
Weight: 0.15kg
