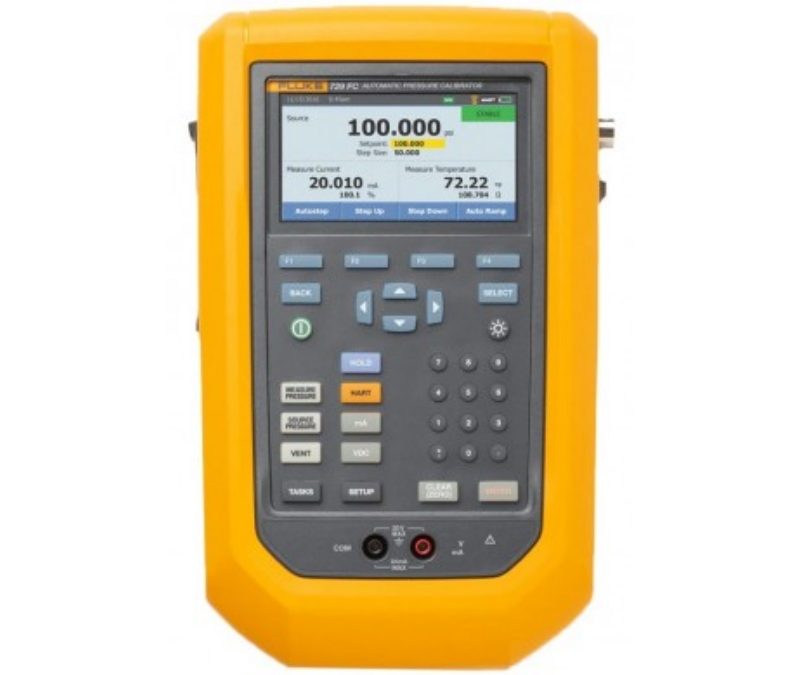

729300G Fluke Pressure Calibrator
Model: 729300G Fluke Pressure Calibrator
Fluke 729 150G FC Specific…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Fluke 729 150G FC Specifications
| Pressure Specifications | |
| Psi Range, Resolution | -12.000 to 300.000 psi |
| Bar Range, Resolution | -0.8273 to 20.6843 bar |
| kPa Range, Resolution | -82.73 to 2068.43 kPa |
| One-Year Specification | 0.02% of full scale |
| Control Specification | 0.005% full scale minimum |
| Ranges | |
| mA Measure, Source and Simulate | 0 to 24 mA |
| Volts DC Measure | 0 to 30 V DC |
| Resolution | |
| mA DC Source, Simulate and Measure | 1 μA |
| Voltage DC Measurement | 1 mV |
| Accuracy | 0.01% ± 2 LSD all ranges (at 23°C ± 5°C) |
| Stability | 20 ppm of full scale /°C from -10 to +18°C and 28 to +50°C |
| Loop Compliance Voltage | 24 V DC at 20 mA |
| mA Simulate External Voltage Requirement | 12 to 30 V DC |
| Temperature | 0.01°F (0.01°C) |
| Drive Capability | 1200 Ω without HART resistor, 950 Ω with internal HART resistor |
| General Specifications | |
| Temperature | Operating: 14 to 122°F (-10 to 50°C) for measurement, 32 to 122°F (0 to 50°C) for pressure control Storage: -4 to 140° (-20 to 60 °C) |
| Altitude | Operating: 9842.52′ (3000 m) Storage: 4265.092′ (1300 m) |
