6XV1875-5CH10 Siemens Cable Assemblies

Data sheet

6XV1875-5CH10

product type designation

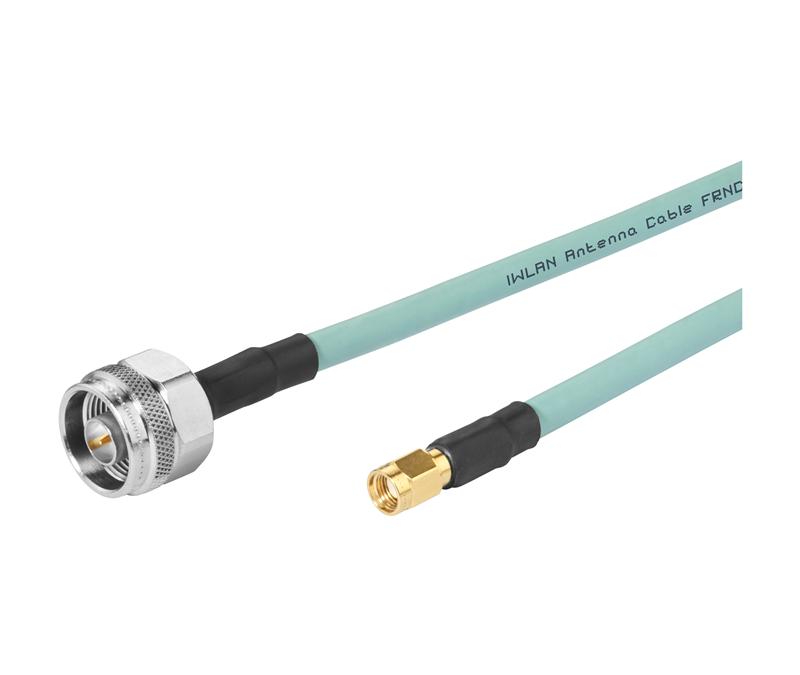

antenna connection cable N-Connect/RSMA plug/plug

product description

Connecting cable for SIMATIC NET antennas, preassembled

N-Connect/ R-SMA male/male flexible connection cable pre-assembled, length 1 m

flexible connecting cable Access point antenna (RCoax and others).

suitability for use

Flexible connecting cable for connecting an antenna to an access point/client

wire length

1 m

electrical data

number of electrical connections

2

type of electrical connection

N-Connect/R-SMA male/male

transmission frequency

0 … 6000 MHz

attenuation factor per length

• at 2.4 GHz / typical

0.53 dB/m

• at 5.2 GHz / typical

0.83 dB/m

• at 5.85 GHz / typical

0.89 dB/m

return loss

• minimum

23 dB

impedance

• rated value

50 Ω

capacity per length / at 1 kHz

82 pF/m

relative speed

82 %

mechanical data

design of the shield

Braided shield made of tin-plated copper wires

outer diameter

• of inner conductor

1.4 mm

• of dielectric

3.8 mm

• of cable sheath

6.3 mm

symmetrical tolerance of the outer diameter / of cable sheath

0.2 mm

thickness / of cable sheath

0.76 mm

material

• of inner conductor

Cu

• of dielectric

polyethylene foam

• of cable sheath

FRNC

color

• of cable sheath

pastel turquoise

bending radius

• with single bend / minimum permissible

32 mm

• with multiple bends / minimum permissible

45 mm

tensile load / maximum

80 N

weight per length

75 kg/km

ambient conditions

ambient temperature

• during operation

-40 … +80 °C

6XV18755CH10

Page 1/2

7/10/2023

Subject to change without notice

© Copyright Siemens● during storage

-40 … +80 °C

• during transport

-40 … +80 °C

• during installation

-25 … +80 °C

chemical resistance

• to mineral oil

conditional resistance

radiological resistance / to UV radiation

resistant

protection class IP

IP68; when plugged in

product features, product functions, product components / general

product feature

• halogen-free

Yes

• silicon-free

Yes

standards, specifications, approvals

certificate of suitability

• EAC approval

Yes

• RoHS conformity

Yes

• fire protection in accordance with EN 45545-2

No

standard

• for fire behavior / flame resistance

UL 1685 (Vertical tray), UL 1581 Sec. 1090 (H)

reference code

• according to IEC 81346-2

WG

• according to IEC 81346-2:2019

WGB
