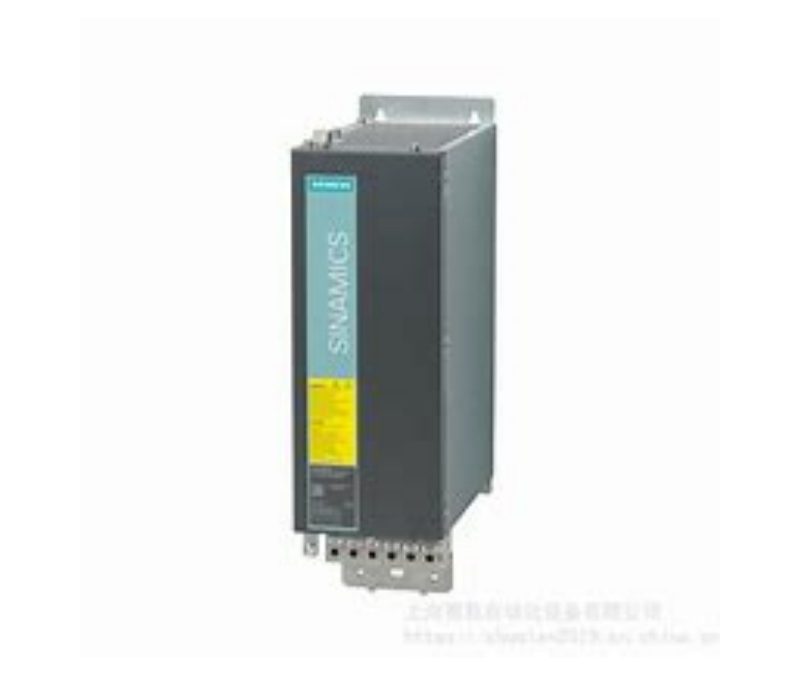

6SL3320-1TG31-8AA3 siemens SINGLE MOTOR MODULE INPUT
Model: 6SL3320-1TG31-8AA3 siemens SINGLE MOTOR MODULE INPUT
Motor end Version 2 x M10 …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Motor end
Version 2 x M10 screw
Conductor cross-section 2 x 185 mm² (2 x -5 AWG)
DC link
Version 2 x M10 screw
Conductor cross-section 2 x 185 mm² (2 x -5 AWG)
Braking module
Version M6 bolt
PE1 connection
Version 2 x M10 screw
Conductor cross-section 2 x 185 mm² (2 x -5 AWG)
PE2 connection
Version 2 x M10 screw
Conductor cross-section 2 x 185 mm² (2 x -5 AWG)
Max. motor cable length 6)
Shielded 300 m (984.25 ft)
Unshielded 450 m (1,476.38 ft)
Standards
Compliance with standards CE / C-Tick (RCM)
Safety Integrated
SIL 2 acc. to IEC 61508, PL d acc. to EN
ISO 13849-1, Category 3 acc. to EN ISO
13849-1
Mechanical data
Line side
Width 326 mm (12.83 in)
Height 1,400 mm (55.12 in)
Depth 356 mm (14.02 in)
Degree of protection IP20
Type of construction Chassis
Net weight 95 kg (209.44 lb)
