6SL3210-5BE31-8CV0 SIEMENS SINAMICS V20 380-480 V

Article No. :

6SL3210-5BE31-8UV0

Technical data are subject to change! There may be discrepancies between calculated and rating plate values.

Page 1 of 2

Generated Mon Jul 10 23:07:35 CET 2023

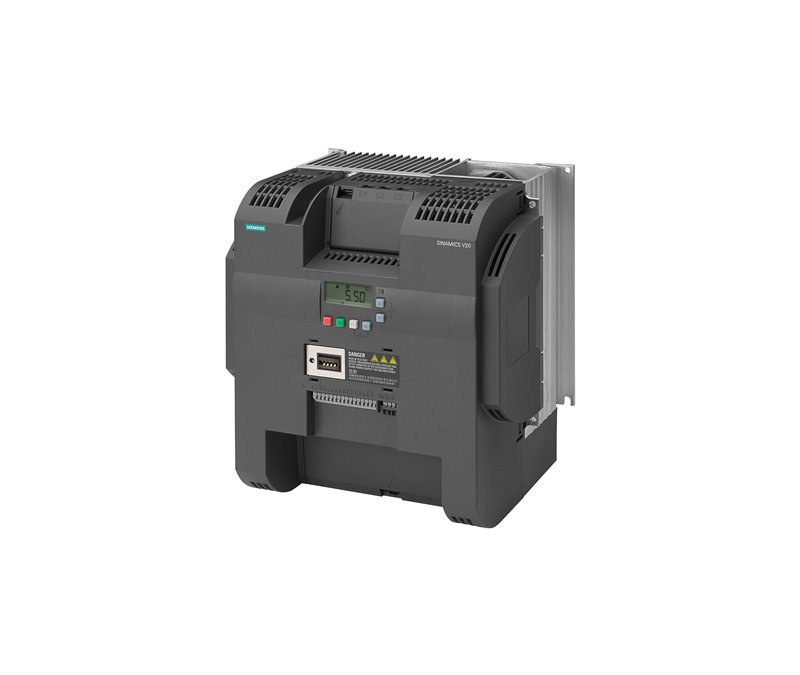

Figure similar

Client order no. :

Order no. :

Offer no. :

Remarks :

Item no. :

Consignment no. :

Project :

Rated data

Input

Number of phases

3 AC

Line voltage

380 … 480 V -15 % +10 %

Line frequency

47 … 63 Hz

Output

Number of phases

3 AC

Rated voltage

400V IEC

480V NEC 1)

Rated power (LO)

22.00 kW

30.00 hp

Rated power (HO)

18.50 kW

25.00 hp

Rated current (LO)

45.00 A

40.00 A

Rated current (HO)

38.00 A

34.00 A

Rated current (IN)

45.00 A

Pulse frequency

4.00 kHz

Output frequency

0 … 550 Hz

Overload capability

Low Overload (LO)

110 % rated output current for 60 s, cycle time 300 s

High Overload (HO)

150 % rated output current for 60 s, cycle time 300 s

General tech. specifications

Power factor λ

0.72

Offset factor cos φ

0.95

Efficiency η

0.98

Filter class (integrated)

Unfiltered

Communication

Communication

USS, Modbus RTU

Inputs / outputs

Standard digital inputs

Number

4

Digital outputs

Number as relay changeover contact

1

Number as transistor

1

Analog inputs

Number

2 (Can be used as additional digital

input)

Analog outputs

Number

1

Ambient conditions

Cooling

External fan

Installation altitude

1,000 m (3,280.84 ft)

Ambient temperature

Operation2)

-10 … 60 °C (14 … 140 °F)

Storage

-40 … 70 °C (-40 … 158 °F)

Relative humidity

Max. operation

95 %

Connections

Max. motor cable length

Shielded

50 m (164.04 ft)

Unshielded

100 m (328.08 ft)

Mechanical data

Mounting position

Through-hole mounting / wall

mounting / side-by-side mounting

Degree of protection

IP20 / UL open type

Frame size

FSE

Net weight

6.24 kg (13.76 lb)

Dimensions

Width

245.0 mm (9.65 in)

Height

264.5 mm (10.41 in)

Depth

209.0 mm (8.23 in)

Standards

Compliance with standards

CE, cULus, C-Tick (RCM), KC

CE marking

EN 61800-5-1 /EN 60204-1 and EN

61800-3
