Siemens

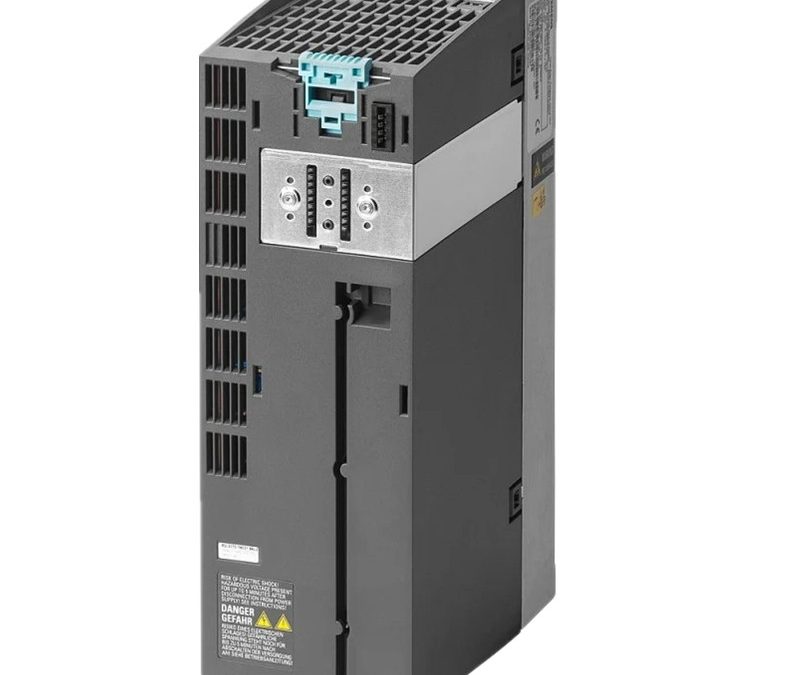

6SL3210-1NE21-3AL1 SIEMENS G120 Power Module PM230 with integrated Class A filter
Model: 6SL3210-1NE21-3AL1 SIEMENS G120 Power Module PM230 with integrated Class A filter
Product Article Number (Ma…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Product | |
| Article Number (Market Facing Number) | 6SL3210-1NE21-3AL1 |
| Product Description | SINAMICS G120 Power Module PM230 with integrated Class A filter Degree of protection IP20 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 5.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature 0 to +40 °C (LO) 292x 100x 165 (HxWxD), FSB without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher Note: PM230 supported no safety |
| Product family | Not available |
| Product Lifecycle (PLM) | PM500:Discontinued Product or end of PLM & Support |
| PLM Effective Date | End of product lifecycle since: 2020.10.01 |
| Price data | |
| Region Specific PriceGroup / Headquarter Price Group | 347 / 347 |
| List Price | Show prices |
| Customer Price | Show prices |
| Metal Factor | None |
| Delivery information | |
| Export Control Regulations | ECCN : 3A999A / AL : N |
| Estimated dispatch time (Working Days) | 1 Day/Days |
| Net Weight (kg) | 3,000 Kg |
| Packaging Dimension | 114,00 x 185,00 x 365,00 |
| Package size unit of measure | MM |
| Quantity Unit | 0 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | 4042948666760 |
| UPC | 887621867294 |
| Commodity Code | 85044084 |
| LKZ_FDB/ CatalogID | D11.1SD |
| Product Group | 9777 |
| Group Code | R220 |
| Country of origin | Great Britain |
| Compliance with the substance restrictions according to RoHS directive | Since: 2006.07.01 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
