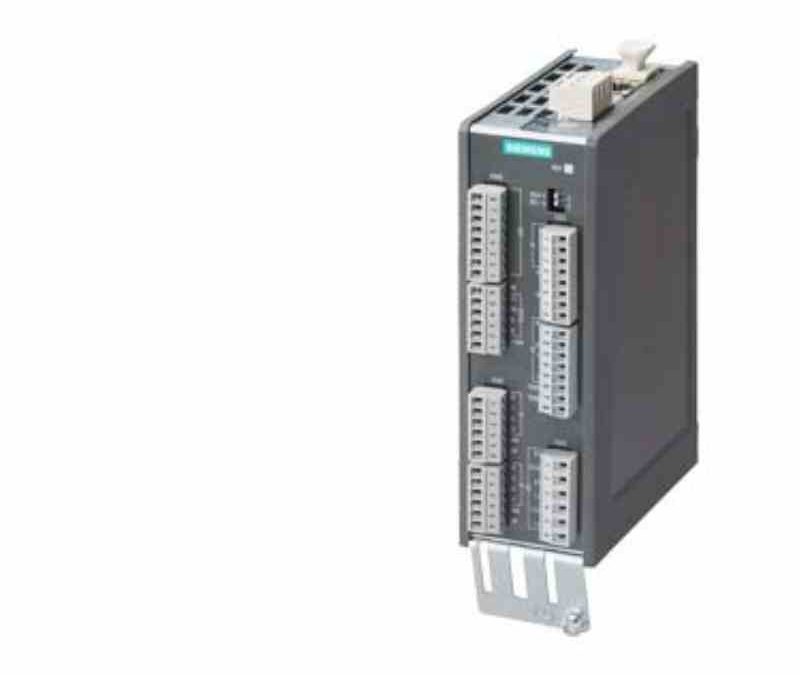

6SL3055-0AA00-3A Siemens TERMINAL MODULE

General technical specifications
Power requirement (DC 24 V) 0.50 A
Power requirement for protection, max.
1) 20 A
Power supply voltage 24 V
Conductor cross-section, on the line
side 2.5 mm² (AWG 14)
PE conductor version M4 screw
Power loss, max. 10.0 W
Digital inputs
Number of digital inputs 8
Voltage -3 … 30 V
Voltage at low signal level -3 … 5 V
Voltage at high signal level 15 … 30 V
Current consumption at 24 V DC 9.0 mA
Delay times, approx.
L –> H 50 µs
H –> L 100 µs
Connection cross-section, max. 1.5 mm² (AWG 16)
Digital inputs/outputs
Number of digital inputs/outputs 4
Number of digital inputs/outputs
parameterizable 4
Connection cross-section, max. 1.5 mm² (AWG 16)
As input
Voltage -3 … 30 V
Voltage at low signal level -3 … 5 V
Voltage at high signal level 15 … 30 V
Current consumption at 24 V DC 9 mA
Delay times, approx.
L –> H 50 µs
H –> L 100 µs
As output
Short-circuit protection available Yes
Voltage 24 V
Current carrying capacity 100 mA
Delay time 4)
Standard 150 µs
Maximum 500 µs
Analog inputs
Number of analog inputs 5) 2
As voltage input
Input voltage -10 … 10 V
Digital resolution 11 bit + sign
Input resistance 100 kOhm
As input current
Input current -20 … 20 mA
Digital resolution 10 bit + sign
Input resistance 250 Ohm
Analog outputs
Number of analog outputs 6) 2
Short-circuit protection available Yes
Output voltage -10 … 10 V
Current carrying capacity -3 … 3 mA
Output current -20 … 20 mA
Burden 7) 500 Ohm
A/D resolution 11 bit + sign
Connection cross-section, max. 1.5 mm² (AWG 16)
Relay outputs
Number of relay outputs 2
Type of relay output Changeover contact
Ampacity with AC 8 A
Ampacity with DC 8 A
Output voltage with AC 250 V
Output voltage with DC 30 V
Switching capacity with AC, max. 2,000 VA
Switching capacity with DC 240 W
Min. switch current required 100 mA
Connection cross-section, max. 2.5 mm² (AWG 14)
Number of DRIVE-CLiQ interfaces 2
Sensor inputs
Number of sensor inputs 9) 1
Mechanical data
Dimensions
Width 50 mm (1.97 in)
Height 150 mm (5.91 in)
Depth 111 mm (4.37 in)
Net weight 0.49 kg (1.08 lb)
