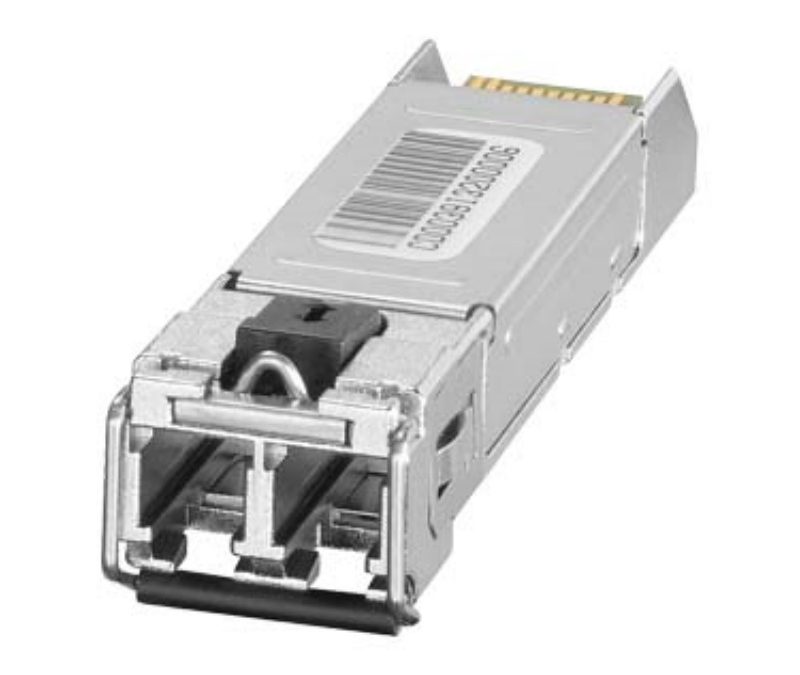

6GK6000-8FE58-0AA0 siemens Accessory

interfaces
number of electrical/optical connections / for network
components or terminal equipment / maximum
1
number of optical interfaces / for network components or
terminal equipment / maximum
1
number of 1000 Mbit/s LC ports / for multimode /
integrated
1
design of the optical interface / for network components or
terminal equipment
LC
range / at the optical interface / depending on the optical
fiber used
2 km
ambient conditions
ambient temperature
● during operation -5 … +70 °C
● during storage -40 … +80 °C
● during transport -40 … +80 °C
relative humidity / at 25 °C / without condensation / during
operation / maximum
95 %
design, dimensions and weights
design SFP Module
width 14 mm
height 9 mm
depth 57 mm
net weight 0.01 kg
product feature / conformal coating No
fastening method latched
standards, specifications, approvals
standard
● for safety / from CSA and UL UL 60950-1, CSA C22.2 No. 60950-7
● for emitted interference EN 61000-6-4 (Class A)
● for interference immunity EN 61000-6-2
laser protection class Complies with 21 CFR chapter 1, subchapter J
certificate of suitability EN 61000-6-2, EN 61000-6-10
