6GK5774-1FX00-0AA0 Siemens RF and Wireless

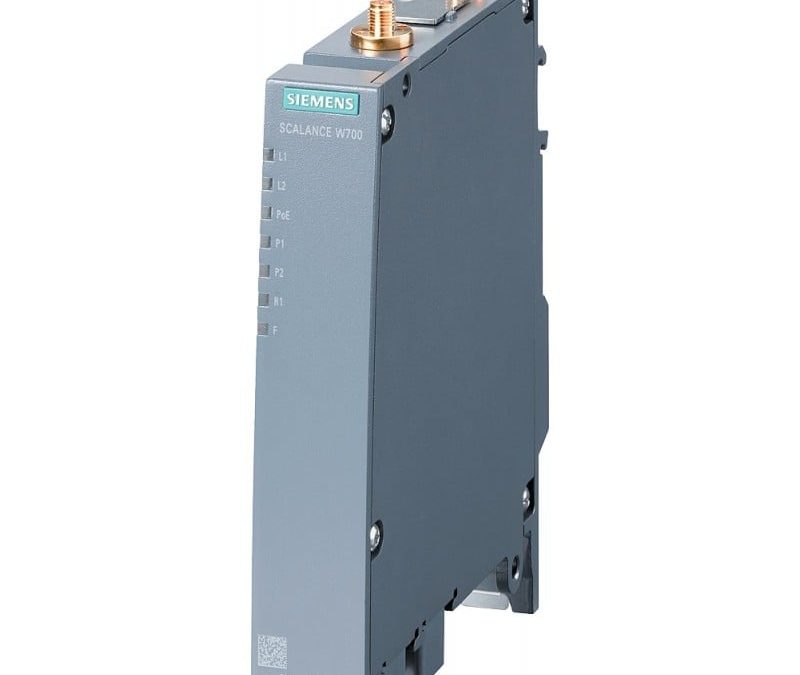

SCALANCE W774-1 RJ45

IWLAN Access Point, SCALANCE W774-1 RJ45, 1 radio, 2 R-SMA

antenna port, iFeatures support via key plug, IEEE 802.11a/b/g/h/n,

2.4/5GHz, gross data rate 300 Mbit/s, 2x RJ45 max. 100 Mbit/s, PoE

integrated 2-port switch, redundant 24 V DC, terminal block, IP30, –

20… 60 ??C, plug slot WPA2/802.11i/e, observe national approvals!

CERT ID: MSN-W1-RJ-E2, scope of delivery: Manuals on CD-ROM,

German/English, 1x terminal block; for operation outside of

USA/Israel

Transmission rate

Transfer rate

• with WLAN / maximum

300?Mbit/s

• for Industrial Ethernet

10,?100?Mbit/s

Transfer rate / for Industrial Ethernet

• minimum

10?Mbit/s

• maximum

100?Mbit/s

Interfaces

Number of electrical connections

• for network components or terminal equipment

2

• for power supply

1

• for redundant voltage supply

1

Type of electrical connection

• for network components or terminal equipment

RJ45 socket

• for power supply

4-pole screw terminal, PoE

design of the removable storage

• C-PLUG

Yes

KEY-PLUG

Yes

Interfaces / wireless

Number of radio cards / permanently installed

1

Transmission mode / for multiple input multiple output

(MIMO)

2×2

Number of spatial streams

2

Number of electrical connections / for external

antenna(s)

2

Type of electrical connection / for external antenna(s)

R-SMA (socket)

Product feature / external antenna can be mounted

directly on device

Yes

Supply voltage, current consumption, power loss

Type of voltage / of the supply voltage

DC

Supply voltage / 1

• from terminal block

19.2?V

Supply voltage / 2

• from terminal block

28.8?V

Design, dimensions and weight

Width

26?mm

Height

156?mm

Depth

127?mm

Width / of the enclosure / without antenna

26?mm

Height / of the enclosure / without antenna

147?mm

Depth / of the enclosure / without antenna

127?mm

Net weight

0.52?kg

Mounting type

wall mounting only if flat mounted

• S7-300 rail mounting

Yes

• S7-1500 rail mounting

Yes

• 35 mm DIN rail mounting

Yes

• wall mounting

Yes
