6GK1901-0DA20-0AA0 Siemens CONNECTORS

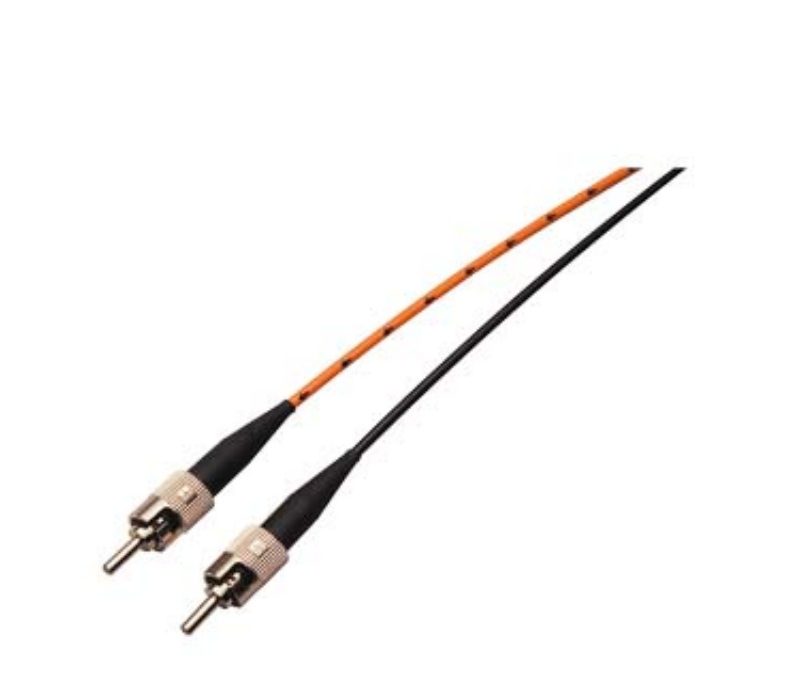

product type designation BFOC Connector Set
product description 20 ST/BFOC plug
MM FO BFOC connector set 20 units for FO cable, Standard, trailing,
indoor, ground, FRNC, robust and ship cable Note: for assembly, special
tools and specialist personnel are required; gluing and polishing technology

transfer rate
transfer rate / for Industrial Ethernet 10 Mbit/s, 100 Mbit/s
transfer rate / with PROFIBUS 9.6 kbit/s … 12 Mbit/s
interfaces
number of optical interfaces / for fiber optic cable 1
design of the optical interface / for network components or
terminal equipment
BFOC connector
type of electrical connection / FastConnect No
mechanical data
material / of the enclosure Metal and plastic
locking mechanism design Bayonet
design, dimensions and weights
type of cable outlet 180° cable outlet
width 9.5 mm
height 9.5 mm
depth 29.7 mm
net weight 8 g
ambient conditions
ambient temperature
● during operation -40 … +85 °C
● during storage -40 … +90 °C
● during transport -40 … +90 °C
protection class IP IP20
product features, product functions, product components / general
product feature
