Siemens

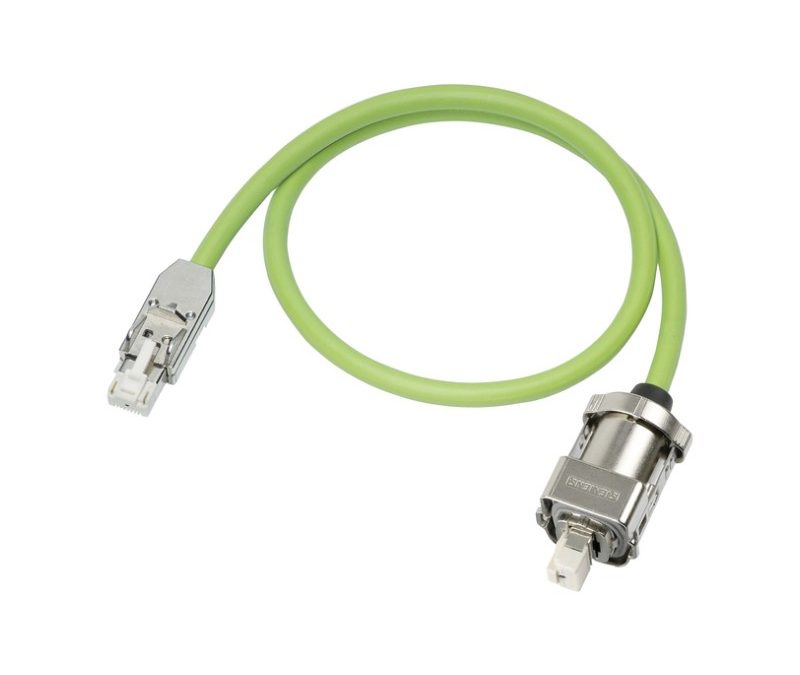

6FX2002-1DC00-1AB0 Siemens Drive CLiQ Cable
Model: 6FX2002-1DC00-1AB0 Siemens Drive CLiQ Cable
Manufacturers Siemens Mode…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Siemens
Model(s)
Siemens Drive
Product Description
- Product Type : Drive CLiQ Cable
- Operating voltage : max. 30 V AC/DC
- Rated surge voltage : 0.5 kV
- Operating current : max. 1.76 A
- Material group : IEC 60664-1, category II
- Locking of ports : DRIVE-CLiQ-System
- Protection : IP20
- Pollution Degree : 3
- Temperature range : -20…+80 °C, depending on cable quality
- No./diameter of wires : 2× 2× 0.22 mm²
- Wire isolation : PE (gn, ye, pk, bl)
- Outer Ø : 6.9 mm ±5%
- Cable number : 884
- Shield : Yes
- Jacket Color : Gray
- Temperature range (fixed) : -20…+80 °C
- Temperature range (mobile) : 0…+60 °C
- Bend radius (fixed) : 7.5× outer Ø
- Bend radius (moving) : 15× outer Ø
- Material (jacket) : PVC (UL/CSA
- Dimensions:20.3 cm x 2.5 cm x 27.9 cm
- Weight :0.1kg
- Country of origin： Slovakia
