6ES7972-0BB70-0XA0 Siemens – PROFIBUS

PROFIBUS connector

product description

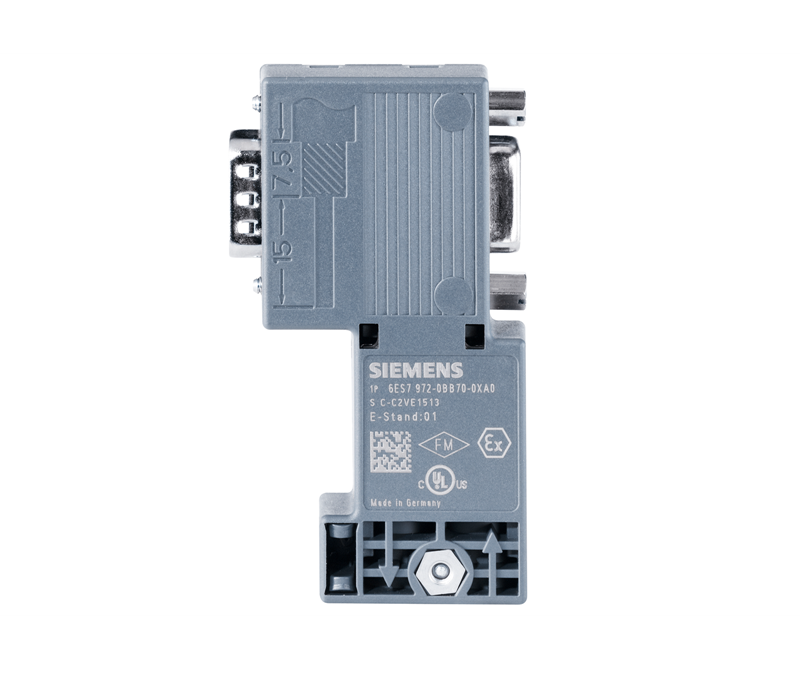

PROFIBUS bus connector, RS 485, Fast Connect, with programming port, 90°

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet,

15.8x 72.2x 36.4 mm (WxHxD), Insulation displacement method FastConnect, With

PG receptacle

suitability for use

For connecting PROFIBUS stations to the PROFIBUS bus cable

transfer rate

transfer rate / with PROFIBUS DP

9.6 kbit/s … 12 Mbit/s

interfaces

number of electrical connections

• for PROFIBUS cables

2

• for network components or terminal equipment

1

type of electrical connection

• for PROFIBUS cables

Integrated insulation displacement terminals for 2-core PB FC installation

cables

• for network components or terminal equipment

9-pin sub D connector

type of electrical connection / FastConnect

Yes

mechanical data

design of terminating resistor

Resistor combination integrated and connectable via slide switch

material / of the enclosure

plastic

locking mechanism design

Screwed joint

design, dimensions and weights

type of cable outlet

90 degree cable outlet

width

15.8 mm

height

72 mm

depth

36.4 mm

net weight

45 g

ambient conditions

ambient temperature

• during operation

-25 … +60 °C

• during storage

-40 … +70 °C

• during transport

-40 … +70 °C

protection class IP

IP20

product features, product functions, product components / general

product feature

• silicon-free

Yes

product component

• PG connection socket

Yes

• strain relief

Yes

standards, specifications, approvals

certificate of suitability

• RoHS conformity

Yes

• UL approval

Yes
