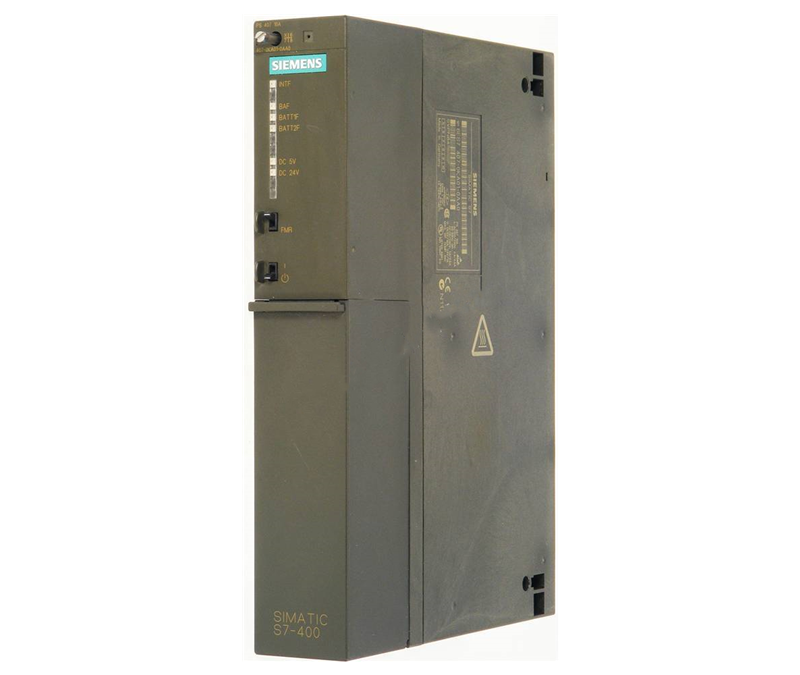

6ES7407-0KA02-0AA0 Siemens Simatic S7-400 Power Supply PS407
Model: 6ES7407-0KA02-0AA0 Siemens Simatic S7-400 Power Supply PS407
Manufacturers Siemens Mode…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Siemens
Siemens
Model(s)
Siemens module
Siemens module
- Product Type : Simatic S7-400, Power Supply PS407
- Supply Voltage Rated Value (DC) : 120 V DC
- Line Frequency Rated Value 50 Hz : Yes
- Mains Buffering Mains/Voltage Failure Stored Energy Time : 20 ms
- Rated Value at 110 V DC : 1 A; at 120 V DC
- Output Current for Backplane Bus (5 V DC), max. : 10 A; no base load required
- Power Active Power Input, typ. : 95 W
- Power loss, typ. : 20 W
- Backup Battery (optional) : Yes; 1x lithium AA; 3.6 V / 2.2 Ah
- Equipment Protection Class : I, with protective conductor
- FM Approval : Yes; Ta: 0 °C to 70 °C T4
- Design of Electrical Connection : 3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm
- Dimensions (L x W x H) : 21.7 cm x 5 cm x 29 cm
- Weight : 1.2 kg
