Siemens

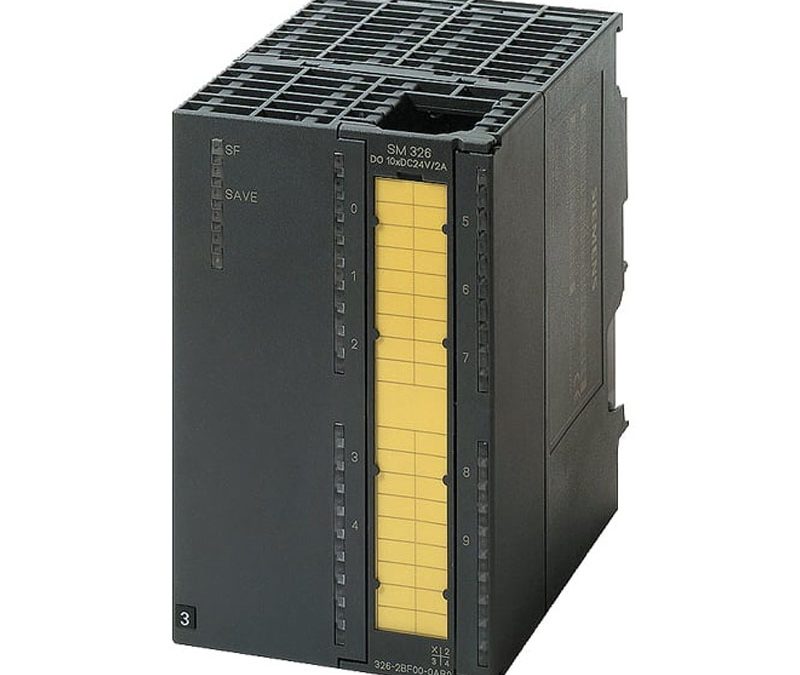

6ES7326-2BF01-0AB0 SIEMENS Digital Output Module
Model: 6ES7326-2BF01-0AB0 SIEMENS Digital Output Module
SIMATIC S7, Digital output…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
SIMATIC S7, Digital output SM 326, 10 DO, 24 V DC, 2A, fail-safe digital output for SIMATIC S7F systems, with diagnostic alarm, 1x 40-pole
| Dimensions | ||
| Width | 80 mm | |
| Height | 125 mm | |
| Depth | 120 mm | |
| Weights | ||
| Weight, approx. | 465 g | |
| Supply voltage | ||
| Rated value (DC) | 24 V; 1L+ | |
| Load voltage L+ | ||
| ● Rated value (DC) | 24 V; 2L+, 3L+ | |
| Input current | ||
| from supply voltage 1L+, max. | 70 mA | |
| from load voltage 2L+ (without load), max. | 100 mA | |
| from load voltage 3L+ (without load), max. | 100 mA | |
| from backplane bus 5 V DC, max. | 100 mA | |
| Power loss | ||
| Power loss, typ. | 12 W | |
