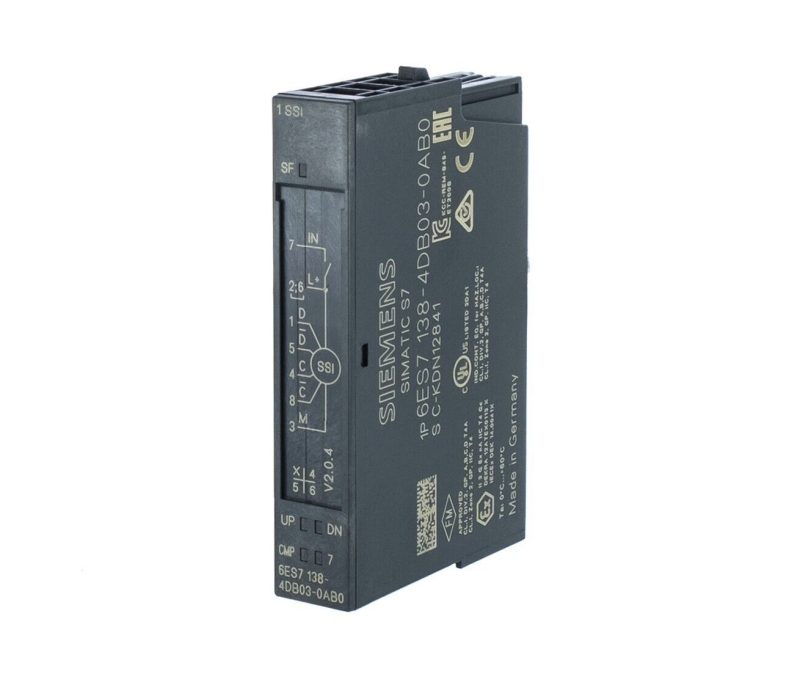

6ES7138-4DB03-0AB0 Siemens SIMATIC DP Electronics module for ET 200S
Model: 6ES7138-4DB03-0AB0 Siemens SIMATIC DP Electronics module for ET 200S
Siemens Model(s) Siemens M…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Siemens
Model(s)
Siemens Module
Product Description
- Product type : SIMATIC DP, Electronics module for ET 200S
- 1 SSI 25 bit/1 MHz 15 mm width
- Module for connection of absolute value encoders with
- SSI Synchronous Serial Interface with DI
- Comparison value withclock synchronization
- Rated value (DC) 24 V
- Permissible range, lower limit (DC) 20.4 V
- Permissible range, upper limit (DC) 28.8 V
- Reverse polarity protection Yes
- Encoder supply : 24 V
- Absolute encoder (SSI) : Yes
- Type of output voltage : L+ (-0.8 V)
- Power loss, typ. : 1 W
- Short-circuit protection : Yes
- Cable length, shielded, max. : 320 m; At 125 kHz
- Monoflop time : 16/32/48/64 ??s”
- Dimensions (LxWxH) : 6,10 x 8,80 x 2,20cm
- Weight :0.045kg
- Country of origin??Germany
