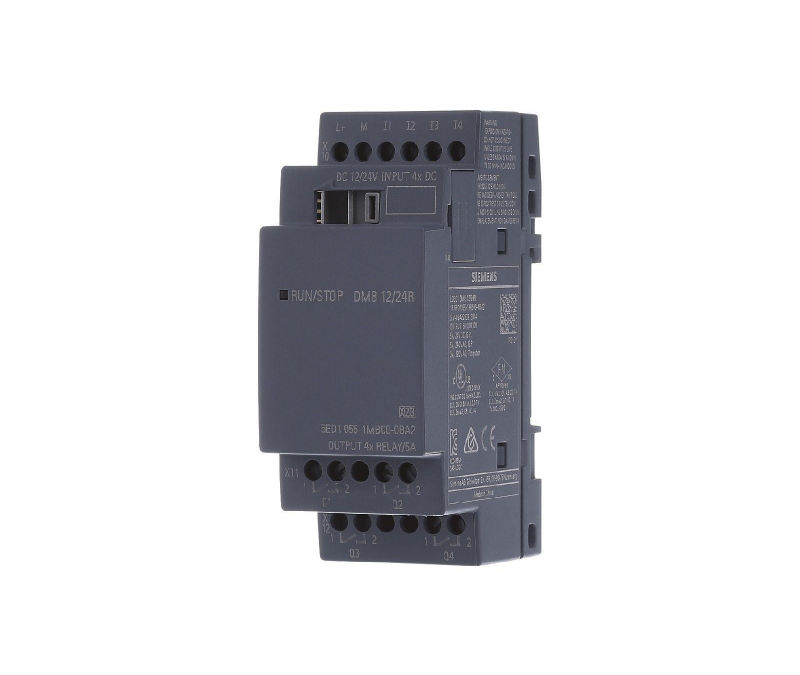

6ED1055-1MB00-0BA2 Siemens LOGO DM8 12/24R Expansion Module
Model: 6ED1055-1MB00-0BA2 Siemens LOGO DM8 12/24R Expansion Module
Manufacturers Siemens Mode…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Siemens
Model(s)
Siemens Module
Product Description
- Product Type : LOGO! DM8 12/24R Expansion Module
- Mounting on 35 mm DIN rail, 2 spacing units wide
- Supply voltage
- Rated value (DC)
- 12 V DC : Yes
- 24 V DC : Yes
- Permissible range, lower limit (DC) : 10.8 V
- Permissible range, upper limit (DC) : 28.8 V
- Digital inputs
- Number of digital inputs : 4
- Input voltage
- Type of input voltage : DC
- for signal “”0″” : < 5V DC
- for signal “”1″” : > 8.5 V
- Input current
- for signal “”0″”, max. (permissible quiescent current) : 0.88 mA
- for signal “”1″”, typ. 4.2 mA
- Input delay (for rated value of input voltage)
- for standard inputs
- at “”0″” to “”1″”, max. : 1.5 ms
- at “”1″” to “”0″”, max. : 1.5 ms
- Digital outputs
- Number of digital outputs : 4; Relays
- Short-circuit protection : No
- Controlling a digital input : Yes
- Switching capacity of the outputs
- on lamp load, max. : 1 000 W
- Output current
- for signal “”1″” rated value : 5 A
- Parallel switching of two outputs
- for uprating : No
- Switching frequency
- with resistive load, max. : 2 Hz
- with inductive load, max. : 0.5 Hz
- mechanical, max. : 10 Hz
- Relay outputs
- Switching capacity of contacts
- with inductive load, max. : 3 A
- with resistive load, max. : 5 A
- Dimensions (LxWxH) : 7.00 x 9.70 x 5.70cm
- Weight :0.166kg
- Country of origin： China
