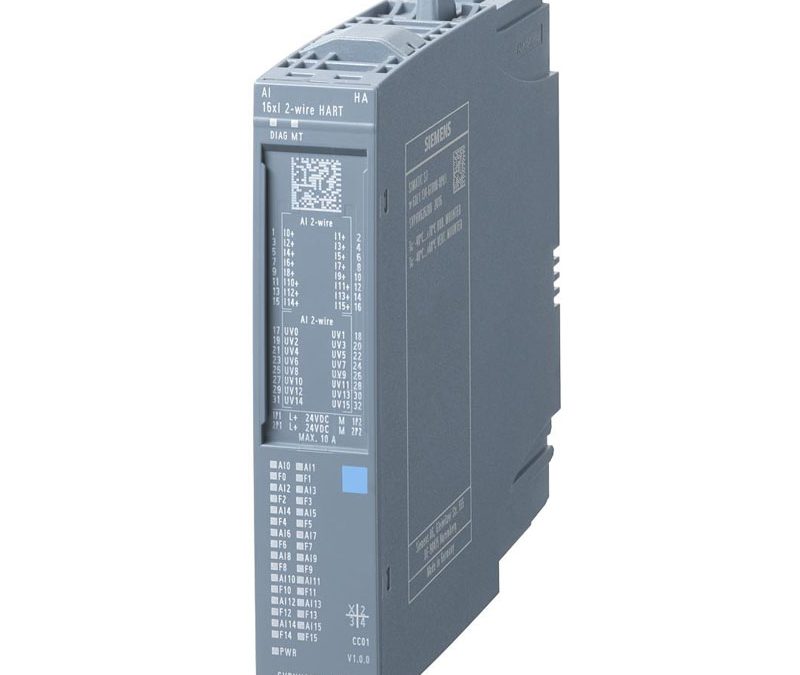

6DL1134-6TH00-0PH1 Siemens Analog input module
Model: 6DL1134-6TH00-0PH1 Siemens Analog input module
Product type designation A…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product type designation AI 16 x I 2-wire mA HART
Firmware version V1.1
● FW update possible Yes
Usable terminal block TB type H1, M1, P0 and N0
Color code for module-specific color identification plate CC01
Product function
● I&M data Yes; I&M0 to I&M3
Engineering with
● PCS 7 configurable/integrated from version V9.0
Redundancy
● Redundancy capability Yes; With TB type M1
CiR – Configuration in RUN
Reparameterization possible in RUN Yes
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Input current
Current consumption (rated value) 80 mA; without sensor supply
Current consumption, max. 90 mA; without sensor supply
Encoder supply
24 V encoder supply
● 24 V Yes
● Short-circuit protection Yes; Electronic (response threshold 0.7 A to 1.5 A)
● Output current per channel, max. 0.5 A
● Output current per module, max. 2 A
Power loss
Power loss, typ. 4.5 W; without sensor supply
Address area
Address space per module
● Address space per module, max. 34 byte; 32-byte inputs and 2 bytes for QI information
● Address space per module with HART, max. 74 byte; 32-byte inputs and 2 bytes for QI information, 40-byte inputs for HART
● Address space per module with MultiHART, max. 41 byte; 32-byte inputs for HART and 2 bytes for QI information, 6-byte inputs
for HART, and 1-byte output for MultiHART command
Analog inputs
Number of analog inputs 16
permissible input current for current input (destruction limit),
max.
30 mA
Firmware version V1.1
● FW update possible Yes
Usable terminal block TB type H1, M1, P0 and N0
Color code for module-specific color identification plate CC01
Product function
● I&M data Yes; I&M0 to I&M3
Engineering with
● PCS 7 configurable/integrated from version V9.0
Redundancy
● Redundancy capability Yes; With TB type M1
CiR – Configuration in RUN
Reparameterization possible in RUN Yes
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Input current
Current consumption (rated value) 80 mA; without sensor supply
Current consumption, max. 90 mA; without sensor supply
Encoder supply
24 V encoder supply
● 24 V Yes
● Short-circuit protection Yes; Electronic (response threshold 0.7 A to 1.5 A)
● Output current per channel, max. 0.5 A
● Output current per module, max. 2 A
Power loss
Power loss, typ. 4.5 W; without sensor supply
Address area
Address space per module
● Address space per module, max. 34 byte; 32-byte inputs and 2 bytes for QI information
● Address space per module with HART, max. 74 byte; 32-byte inputs and 2 bytes for QI information, 40-byte inputs for HART
● Address space per module with MultiHART, max. 41 byte; 32-byte inputs for HART and 2 bytes for QI information, 6-byte inputs
for HART, and 1-byte output for MultiHART command
Analog inputs
Number of analog inputs 16
permissible input current for current input (destruction limit),
max.
30 mA
