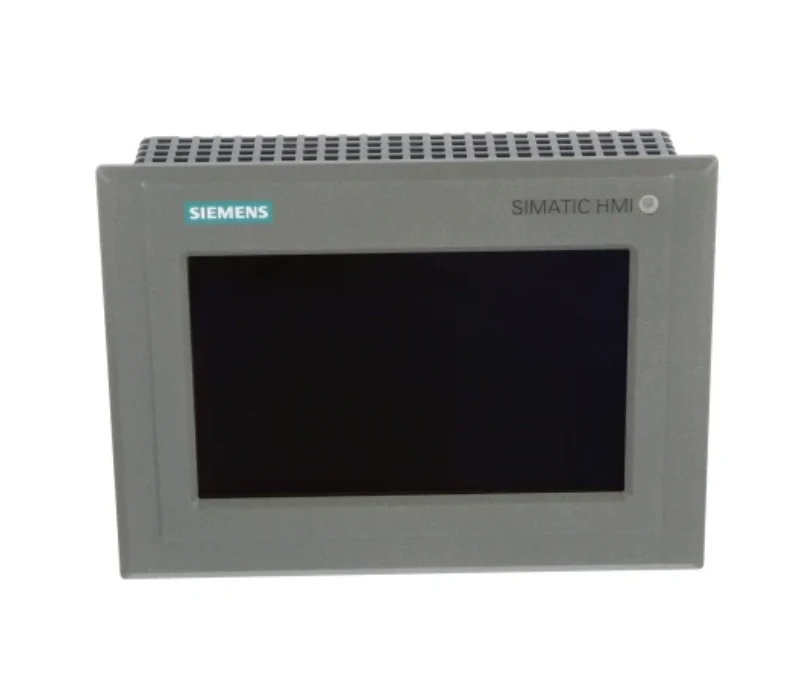

6AV2124-0GC13-0AX0 Siemens Comfort Panels

Siemens Siemens

Model: 6AV2124-0GC13-0AX0 Siemens Comfort Panels

Product Details General in…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Product Details

General information
Product type designation		TP700 Comfort Outdoor
Display
Design of display		TFT, bonded, daylight-readable
Screen diagonal		7 in
Display width		152.4 mm
Display height		91.4 mm
Number of colors		16 777 216
Resolution (pixels)
• Horizontal image resolution		800 pixel
• Vertical image resolution		480 pixel
Backlighting
• MTBF backlighting (at 25 °C)		50 000 h
• Backlight dimmable		Yes; LED, can be dimmed manually or automatically

Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		0.7 A
Starting current inrush I²t		0.5 A²·s
Power
Active power input, typ.		17 W

Dimensions
Width of the housing front		214 mm
Height of housing front		158 mm
Mounting cutout, width		197 mm
Mounting cutout, height		141 mm
Overall depth		67 mm
Weights
Weight (without packaging)		1.5 kg
Weight (with packaging)		1.7 kg
