644HANAXAM5Q4 Rosemount Temperature Transmitter

Manufacturer : Rosemount

Product No. : 644HANAXAM5Q4 + 0065109D0150N0710XA

Product Type : Temperature Transmitter with digital signal based on HART protocol + Pt 100 RTD (IEC 751) with Barstock Thermowell

644HANAXAM5Q4 : Temperature Transmitter with digital signal based on HART protocol

Mode : 644,Temperature transmitter

Transmitter type : H,DIN A head mount – single sensor input

Output : A,4–20 mA with digital signal based on HART protocol

Assemble options : XA,Sensor specified separately and assembled to transmitter

Display and interface options : M5,LCD display

Calibration certificate : Q4,Calibration certificate (3-point calibration with certificate)

Weight : 0.078kg

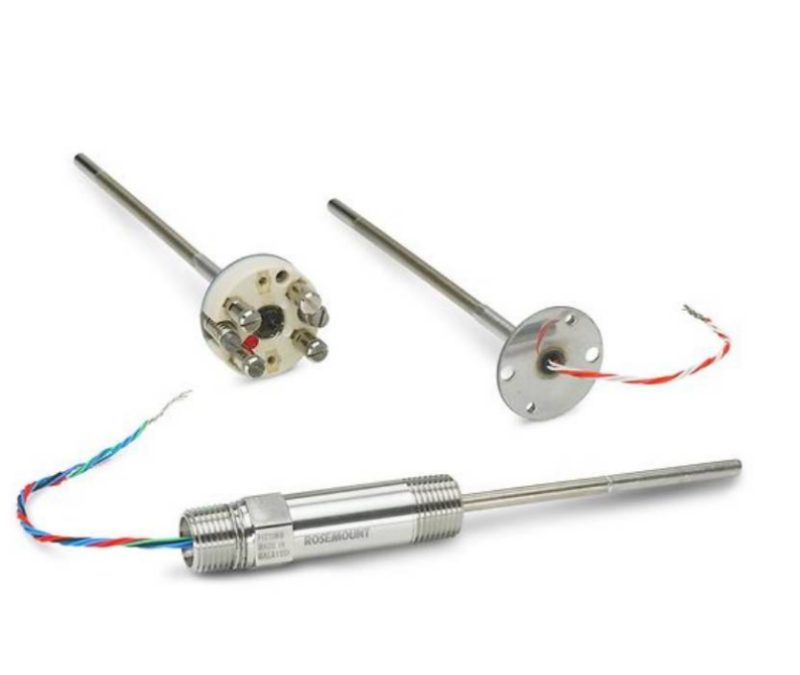

0065109D0150N0710XA : Pt 100 RTD (IEC 751) with Barstock Thermowell

Model : Pt 100 RTD (IEC 751) without thermowell

Connection head : 1 – Rosemount aluminum with LCD display meter cover

Sensor lead wire termination : 0 – Flying leads (no springs on DIN plate)

Sensor type : 9 – RTD, Single element, 4-wire vibration resistance

Extension : D – DIN Standard 12 1.5

Head connection : M24 1.5

Instrument connection : 1/2-in. NPT

Material : 300 series stainless steel

Extension length (N) in millimeters : 0150 – 150 mm (standard for DIN extension used with form B connection head material codes J and L)

Thermowell material : N – No thermowell

Sensor length (L) in millimeters : 0710

Assemble to option : XA – Assemble sensor to specific temperature transmitter (PTFE paste)

Weight : 5 Kg

Shipping Weight : 8 Kg
