B&R

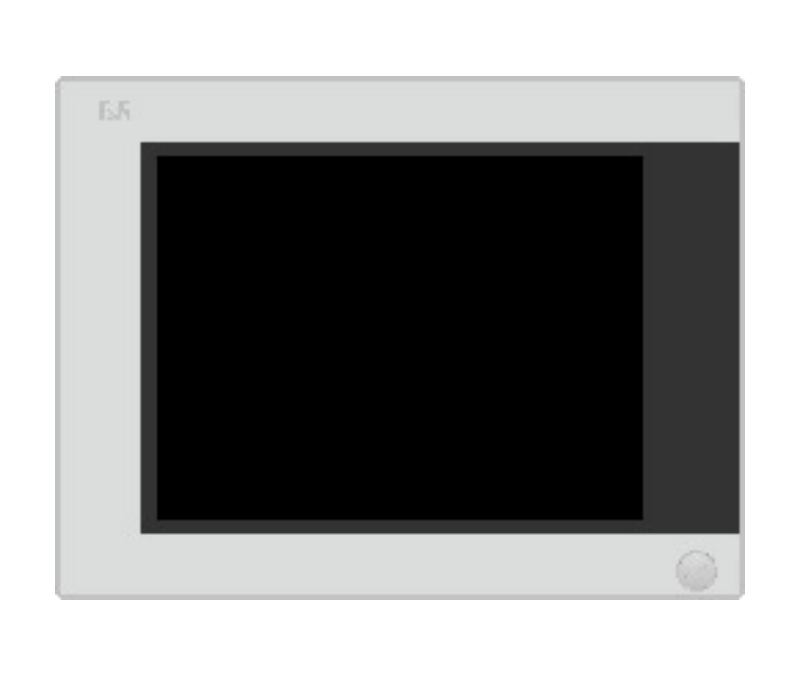

5PP520.1505-00 B&R Power Panel
Model: 5PP520.1505-00 B&R Power Panel
Electrical properties Nomi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | 1.5 A |
| Inrush current | Typ. 3 A, max. 50 A for <300 µs |
| Power consumption | 31 W |
| Galvanic isolation | Yes |
Ambient conditions
| Temperature | |
| Operation | 0 to 55°C |
| Storage | -20 to 60°C |
| Transport | -20 to 60°C |
| Shock | |
| Operation | 15 g, 11 ms |
| Storage | 30 g, 6 ms |
| Transport | 30 g, 6 ms |
| Dimensions | |
| Width | 435 mm |
| Height | 330 mm |
| Depth | 62.7 mm |
| Weight | 5100 g |
