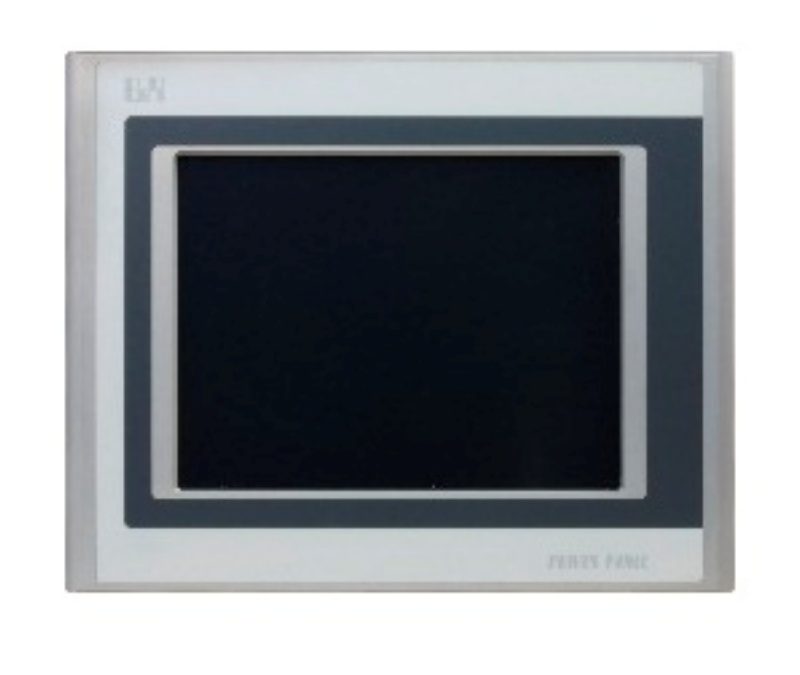

5pp320.1214-39 B&R touch screen
Model: 5pp320.1214-39 B&R touch screen
General information LEDs P…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
General information
| LEDs | Power/User, CF |
| B&R ID code | 0x23D1 |
| Battery | |
| Type | Renata 950 mAh |
| Service life | 4 years |
| Removable | Yes, accessible from the outside |
| Backup capacitor | |
| Buffer time | 10 min |
| Variant | Lithium ion |
| Dimensions | |
| Width | 362 mm |
| Height | 284 mm |
| Depth | 65.5 mm |
| Weight | 4100 g |
Controller
| Bootloader | BIOS |
| Processor | |
| Type | Geode LX800 |
| Clock frequency | 500 MHz |
| L1 cache | 128 kB (64 kB I-cache / 64 kB D-cache) |
| L2 cache | 128 kB |
| Expanded command set | MMX technology, 3D Now |
| Floating point unit (FPU) | Yes |
| Flash | 2 MB (for firmware) |
| Cooling | Passive via heat sink |
| Mode/Node switches | 2, 16 positions each |
| Watchdog | MTCX |
| Real-time clock | |
| Accuracy | At 25°C: Typ. 30 ppm (2.5 seconds) per day |
Display
| Type | TFT color |
| Diagonal | 12.1″ (307 mm) |
| Colors | 262,144 |
| Resolution | SVGA, 800 x 600 pixels |
| Contrast | 800:1 |
| Viewing angles | |
| Horizontal | Direction R / Direction L = 80° |
| Vertical | Direction U = 60° / Direction D = 80° |
| Backlight | |
| Type | LCD |
| Brightness | 450 cd/m² |
| Half-brightness time | 50,000 h |
