5PC810.5X05-00 B&R PCL AUTOMATION

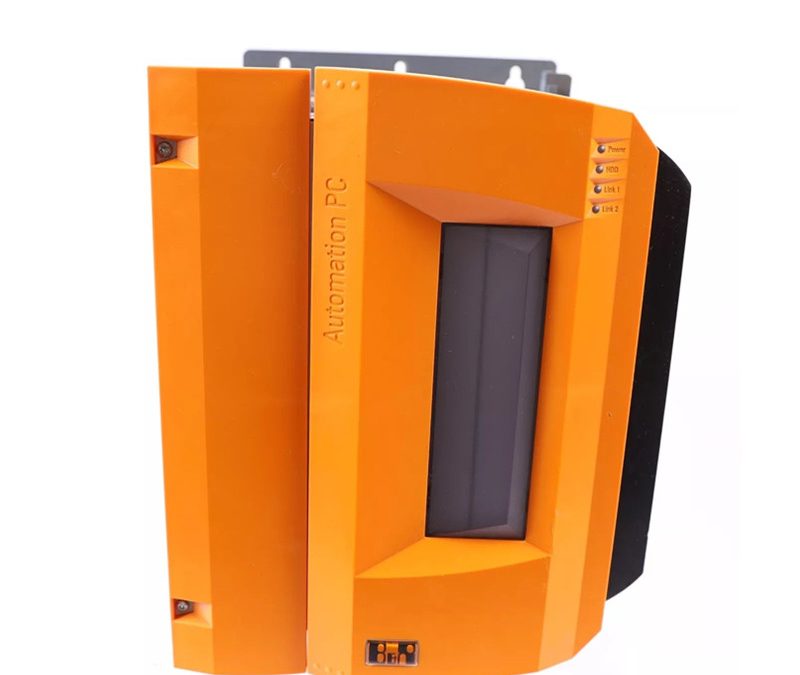

Model: 5PC810.5X05-00 B&R PCL AUTOMATION
General information Dongle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
General information
| Dongle port | Yes |
| LEDs | Power, HDD, Link 1, Link 2 |
| B&R ID code | 0xA3EE |
| Cooling | Passive via heat sink and optionally supported with an active fan kit |
| Battery | |
| Type | Renata 950 mAh |
| Service life | 2½ years |
| Removable | Yes, accessible behind the orange front door |
| Variant | Lithium ion |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
Controller
| Bootloader | BIOS |
| Real-time clock | |
| Battery-backed | Yes |
| Power failure logic | |
| Controller | MTCX |
| Buffer time | 10 ms |
| Graphics | |
| Controller | Depends on the CPU board being used |
| SRAM | |
| Size | 512 kB |
| Battery-backed | Yes |
| Remanent variables in power failure mode | 192 kB (for e.g. Automation Runtime, see Automation Help) |
Interfaces
| COM1 | |
| Type | RS232, modem supported, not galvanically isolated |
| Variant | 9-pin male DSUB connector |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| COM2 | |
| Type | RS232, modem supported, not galvanically isolated |
| Variant | 9-pin male DSUB connector |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| CompactFlash slot 1 | |
| Quantity | 1 |
| Type | Type I |
| CompactFlash slot 2 | |
| Quantity | 1 |
| Type | Type I |
| USB | |
| Quantity | 5 |
| Type | USB 2.0 |
| Variant | Type A |
| Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| Current-carrying capacity | Max. 500 mA or 1 A per connection |
| Ethernet | |
| Quantity | 2 |
| Variant | Shielded RJ45 port |
| Transfer rate | 10/100/1000 Mbit/s |
| Max. baud rate | 1 Gbit/s |
| Panel/Monitor interface | |
| Variant | Female DVI-I connector |
| Type | SDL/DVI/Monitor |
| CAN | |
| Note | optional |
| Audio | |
| Type | AC97 sound |
| Inputs | Microphone, Line In |
| Outputs | Line Out |
| Add-on interface slot | |
| Quantity | 1 |
Slots
| PCI/PCIe slots | |
| Quantity | 4 PCI and 1 PCIe slots or 2 PCI and 3 PCIe slots or 5 PCI slots |
| Slide-in drives | 2 |
| Slide-in compact drives | 1 |
| Automation Panel Link slot | Yes |
| Add-on UPS slot | Yes |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | 6 A |
| Inrush current | Typ. 7 A, max. 50 A for < 300 µs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature | |
| Operation | Component-dependent |
| Storage | -20 to 60°C |
| Transport | -20 to 60°C |
| Relative humidity | |
| Operation | Component-dependent |
| Storage | Component-dependent |
| Transport | Component-dependent |
| Vibration | |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock | |
| Operation | 15 g, 11 ms |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Elevation | |
| Operation | Max. 3000 m (component-dependent) |
Mechanical properties
| Housing | |
| Material | Galvanized plate, plastic |
| Front cover | Dyed orange plastic (similar to Pantone 144CV) |
| Coating | Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV) |
| Dimensions | |
| Width | 201.7 mm with heat sink 5AC801.HS00-00 and 5AC801.HS00-02 216.9 mm with heat sink 5AC801.HS00-01 |
| Height | 270 mm |
| Depth | 254.5 mm |
| Weight | Approx. 3900 g (component-dependent) |
