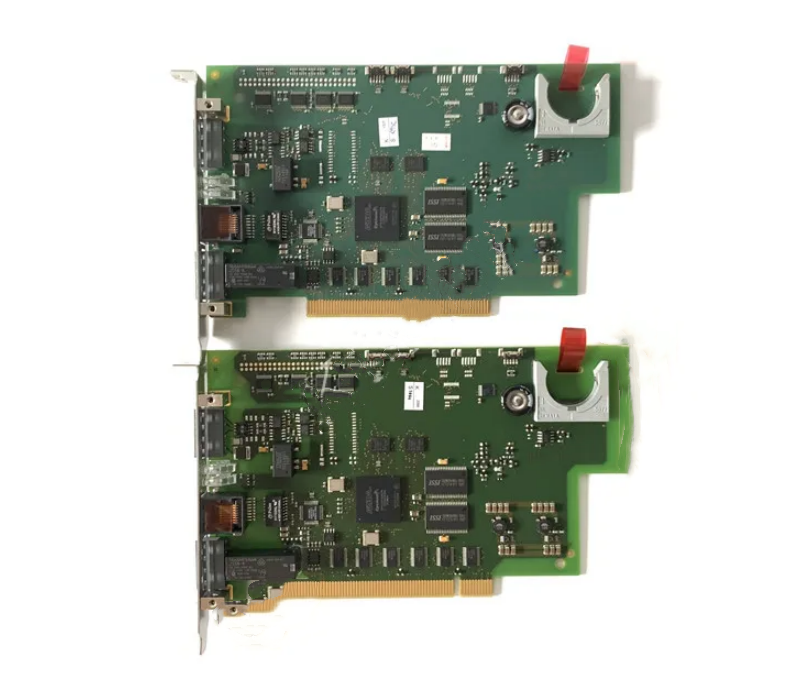

5LS189.6-1 B&R Automation component
Model: 5LS189.6-1 B&R Automation component
Short description Commun…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Short description
| Communication module | 1x X2X Link master, 1x POWERLINK (V1/V2) managing or controlled node |
General information
| B&R ID code | 0x7670 |
| Ready relay | Normally open contact and normally closed contact, max. 30 VDC, max. 10 A |
| Status indicators | Status of the POWERLINK station, network activity, link/collision for IF2 |
| Diagnostics | |
| Bus function (IF2) | Yes, using LED status indicator and software |
| Data transfer (IF1) | Yes, using software |
| Station status (IF2) | Yes, using LED status indicator and software |
| Power consumption | 4 W |
| Electrical isolation | |
| IF1 – IF2 | Yes |
| PC – IFx | Yes |
| Certifications | |
| CE | Yes |
| UL | cULus E115267 Industrial control equipment |
| Interface IF1 | |
| Fieldbus | X2X Link master |
| Variant | 4-pin male multipoint connector |
| Distance between 2 stations | Max. 100 m |
| Interface IF2 | |
| Fieldbus | POWERLINK (V1/V2) managing or controlled node |
| Type | Type 3 |
| Variant | 1x shielded RJ45 port |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Transfer | |
| Physical layer | 100BASE-T |
