B&R

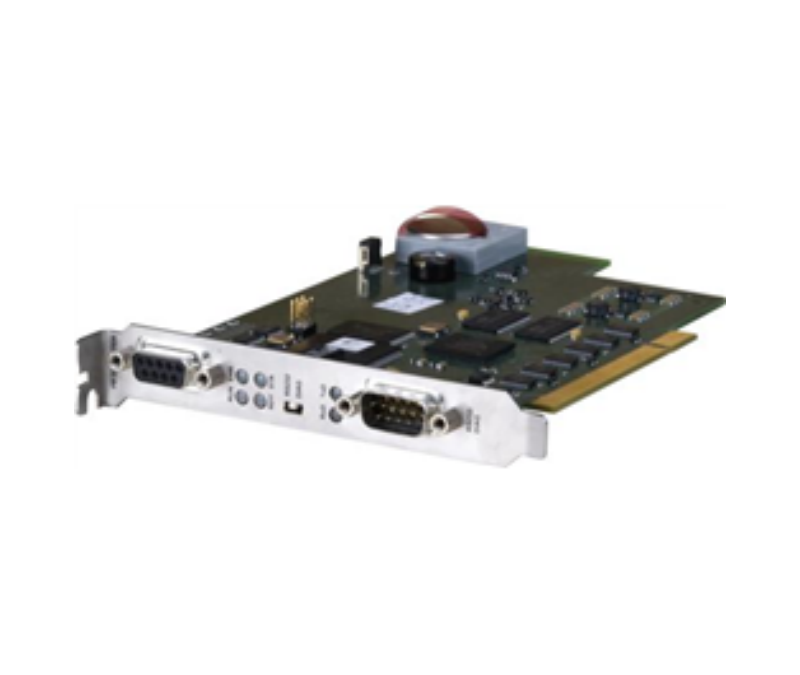

5LS166.6 B&R Automation component
Model: 5LS166.6 B&R Automation component
General information Ready …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
General information
| Ready relay | No |
| Status indicators | 2 LEDs for sending/receiving data for IF1 4 LEDs for IF2 bus function |
| Diagnostics | |
| PROFIBUS DP bus function | Yes, using LED status indicators and software |
| RS232 data transfer | Yes, using LED status indicators and software |
| Power consumption | 1.5 W |
| SRAM | 1 MB, battery-backed |
Interfaces
| Interface IF1 | |
| Signal | RS232 |
| Variant | 9-pin male DSUB connector |
| Max. distance | 900 m |
| Transfer rate | Max. 115.2 kbit/s |
| Interface IF2 | |
| Fieldbus | PROFIBUS DP V0/V1 master |
| Variant | 9-pin female DSUB connector |
| Number of slaves | 125 |
| Max. distance | 1200 m |
| Transfer rate | Max. 12 Mbit/s |
Ambient conditions
| Temperature | |
| Operation | 0 to 55°C |
| Storage | -25 to 70°C |
| Relative humidity | |
| Operation | 0 to 95%, non-condensing |
