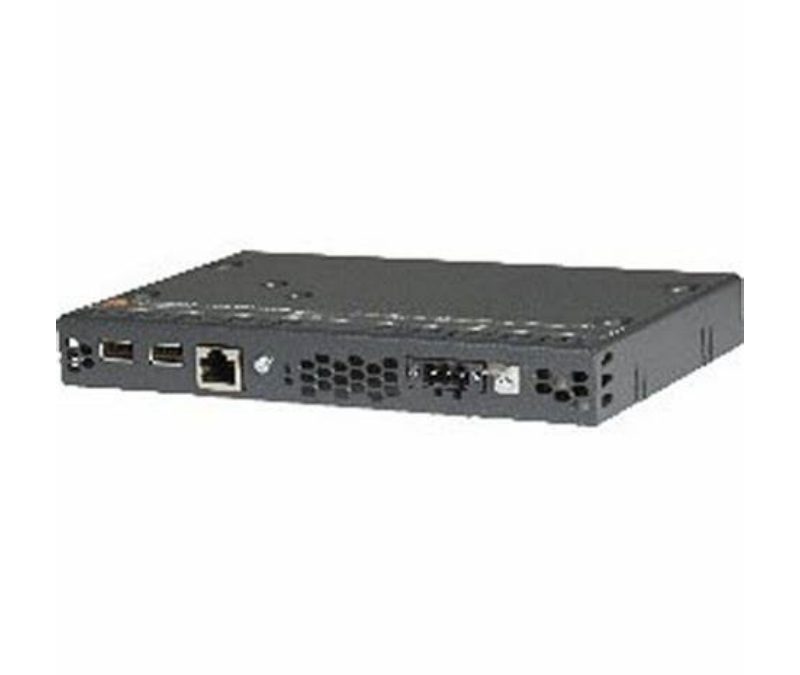

5DLSD3.1001.00 B&R PLC Module/Rack

B&R B&R

Model: 5DLSD3.1001.00 B&R PLC Module/Rack

Product Information Descri…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Product Information

Description:

5DLSD3100100
PANEL LINK SDL3 RECEIVER
24 VDC
RJ45 CONNECTOR
2 X USB 2.0 TYPE A PORTS
Part # 5DLSD3.1001-00
Category PLCs/Machine Control
Subcategory PLC Module/Rack

Weight 0.89 lbs

General information

LEDs	Status, Link
B&R ID code	0xE3FC
Certifications
CE	Yes
UKCA	Yes
UL	cULus E115267 Industrial control equipment
HazLoc	cULus HazLoc E180196 Industrial control equipment for hazardous locations Class I, Division 2, Groups ABCD, T4

Interfaces

USB
Quantity	2
Type	USB 2.0
Variant	2x type A
Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (30 Mbit/s)
Current-carrying capacity	Total max. 1 A
SDL3 In
Variant	RJ45, shielded
Type	SDL3

Electrical properties

Nominal voltage	24 VDC, SELV
Nominal current	Max. 3 A
Operating voltage	24 VDC ±25%
Overvoltage category per EN 61131-2	II
Galvanic isolation	Yes

Operating conditions

Pollution degree per EN 61131-2	Pollution degree 2

Mechanical properties

Dimensions
Width	190 mm
Height	110 mm
Depth	23.6 mm
Weight	527 g
