B&R

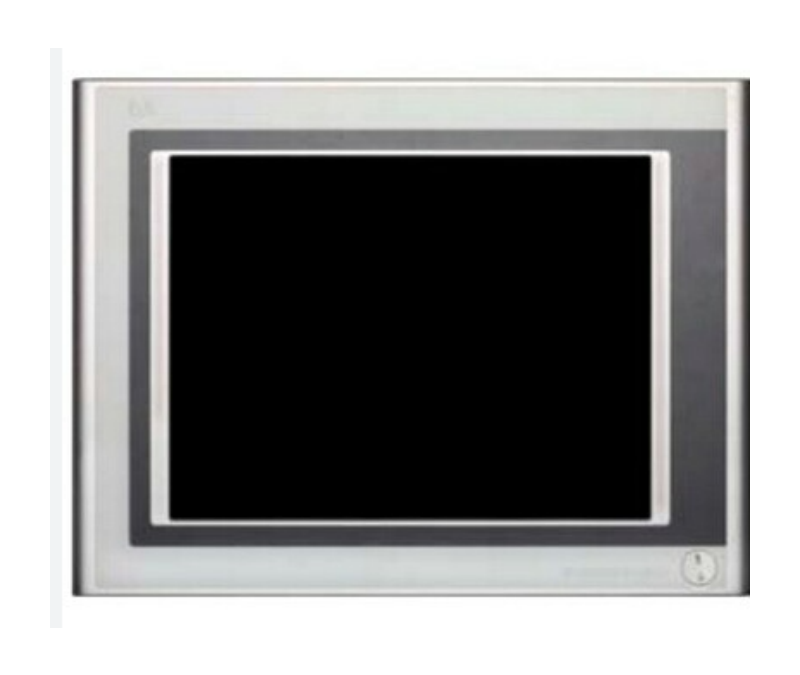

5AP920.1043-01 B&R Front Overlay Touch Screen
Model: 5AP920.1043-01 B&R Front Overlay Touch Screen
General information B&…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
General information
| B&R ID code | 0x1A09 |
| Certifications | |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
Display
| Type | TFT color |
| Diagonal | 10.4″ (264 mm) |
| Colors | 16 million |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 700:1 |
| Viewing angles | |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Direction U = 80° / Direction D = 60° |
| Backlight | |
| Type | LED |
| Brightness | 450 cd/m² |
| Half-brightness time | 50,000 h |
| Filter glass | |
| Transmittance | – |
| Anti-glare coating | – |
| Touch screen | |
| Type | AMT |
| Technology | Analog, resistive |
| Controller | Elo, serial, 12-bit |
| Transmittance | 81% ±3% |
| Width | 323 mm |
| Height | 260 mm |
| Depth | 55 mm |
| Weight | Approx. 2900 g |
