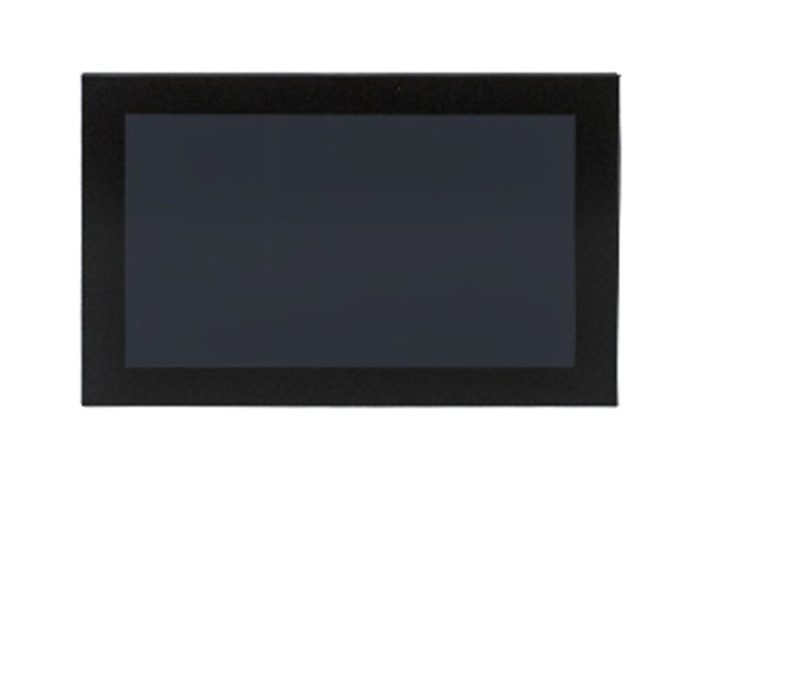

5AP1130.156C-000 B&R PCL AP1130 TFT C FHD 15.6in T
Model: 5AP1130.156C-000 B&R PCL AP1130 TFT C FHD 15.6in T
Display Type TFT color Dia…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Display
| Type | TFT color |
| Diagonal | 15.6″ |
| Colors | 16.7 million |
| Resolution | FHD, 1920 x 1080 pixels |
| Contrast | 800:1 |
| Viewing angles | |
| Horizontal | Direction R = 85° / Direction L = 85° |
| Vertical | Direction U = 85° / Direction D = 85° |
| Backlight | |
| Type | LED |
| Brightness (dimmable) | Typ. 40 to 450 cd/m² |
| Half-brightness time | ≥50,000 h |
| Touch screen | |
| Technology | Projected capacitive touch (PCT) |
| Transmittance | See “Appendix A – Touch screen”. |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | Front: IP65 Back: IP20 (only with installed link module or installed system unit) |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
Mechanical properties
| Front | |
| Frame | Aluminum, coated |
| Design | Black |
| Gasket | 3 mm fixed gasket |
| Dimensions | |
| Width | 414 mm |
| Height | 258.5 mm |
| Weight | 3700 g |
