591C/2700/5/3/0/1/0/41/000 Parker drive
Model: 591C/2700/5/3/0/1/0/41/000 Parker drive
SSD Drives 590C Series – 2…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details

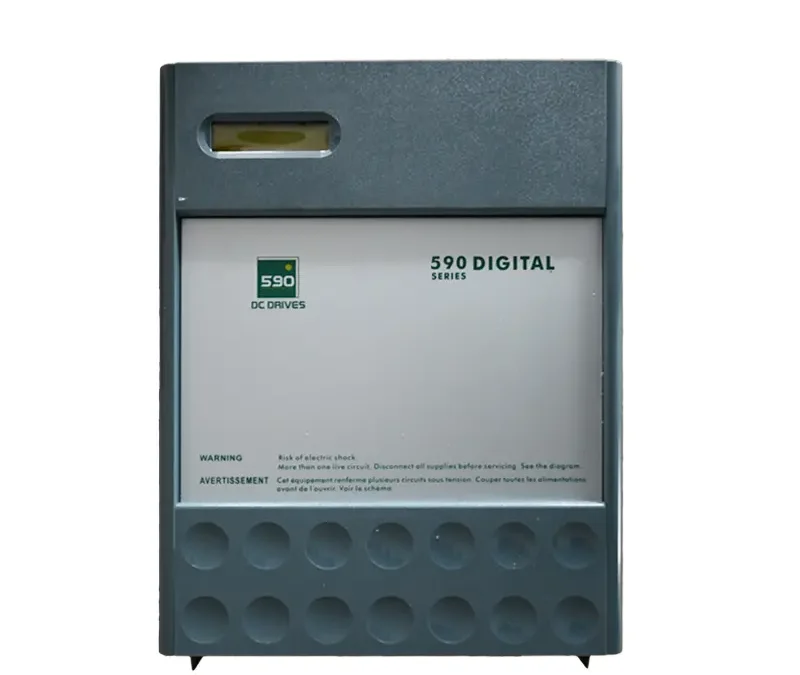

SSD Drives 590C Series – 270A Two Quadrant DC Thyristor Drive for 380V Supply with 110V Control supply.
Typical Motor output – up to 105kW (141HP) at 440V DC for DC motor speed and torque control.
Terminals include:-
5 x Analogue Inputs (4 x Configurable).
3 x Analogue Outputs (2 x Configurable).
Tacho input (or internal AVF) Feedback.
10 x Digital inputs – 5 are Configurable including two as encoder inputs for a second or line encoder.
3 x Digital Outputs (all Configurable).
+ & – 10V for Potentiometers.
Input current – 243A
Input Voltage – 380V three phase +-10% at 50/60Hz.
Rated at 40C Ambient.
Ventilation space above – 150mm. Ventilation space below – 100mm. Ventilation space at sides – 0mm (bars are left side).
250mm wide (plus DC busbars on LHS) x 485mm high x 213mm deep.
Panel mount with screw fixings on 400 x 200mm centres.
Weight is 20kg
Full part number is – 591C/2700/5/0/0/1/0/00
