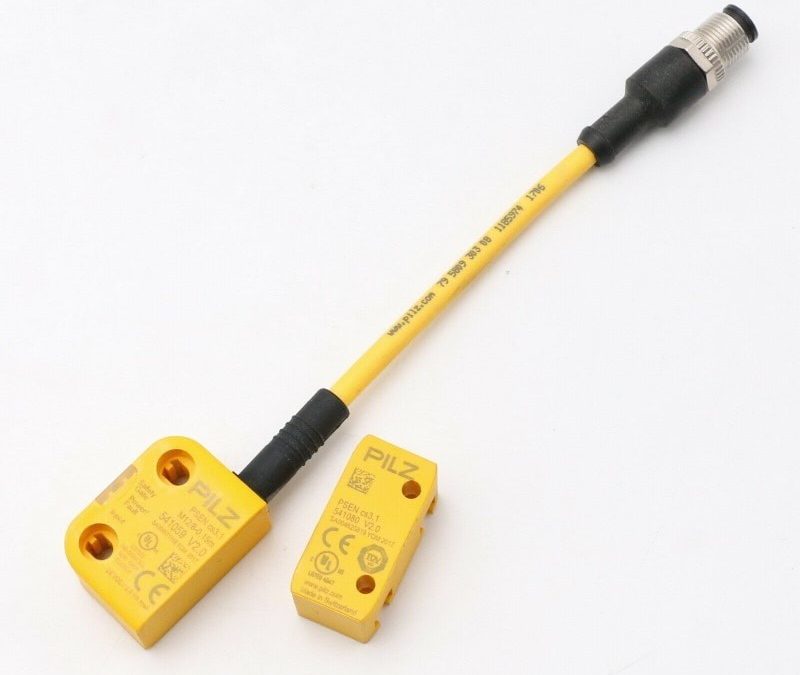

541059 PILZ PSEN cs3.1 M12/8-0.15m Switch
Model: 541059 PILZ PSEN cs3.1 M12/8-0.15m Switch
Manufacturers PILZ PSEN cs…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
PILZ
PSEN cs3.1 M12/8-0.15m 1switch:541059
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, one
direction of actuation IP67, operating distance 11 mm, Sao = 8 mm, Sar
= 20 mm, can be connected in series PU = 1 piece coded switch without
actuator.
Technical details
Certifications: CE;cULus Listed;EAC (Eurasian);T??V;FCC;IC
Sensor principle: Transponder
Type of coding: Coded
Number of OSSD outputs: 2
Number of inputs: 2
Connection type: M12, 8pol. male
Supply voltage (V): 24,0
Supply voltage type: DC
Power consumption DC: 1.0 W
Assured switching distance: 8.0 mm
Assured release distance: 20.0 mm
Protection type, housing: IP6K9K
Width dimension: 26.0 mm
Height dimension: 37.0 mm
Depth dimension: 18.0 mm
Gross weight: 57 g
Net weight: 38 g
Ambient temperature: -25 – 70 ??C
