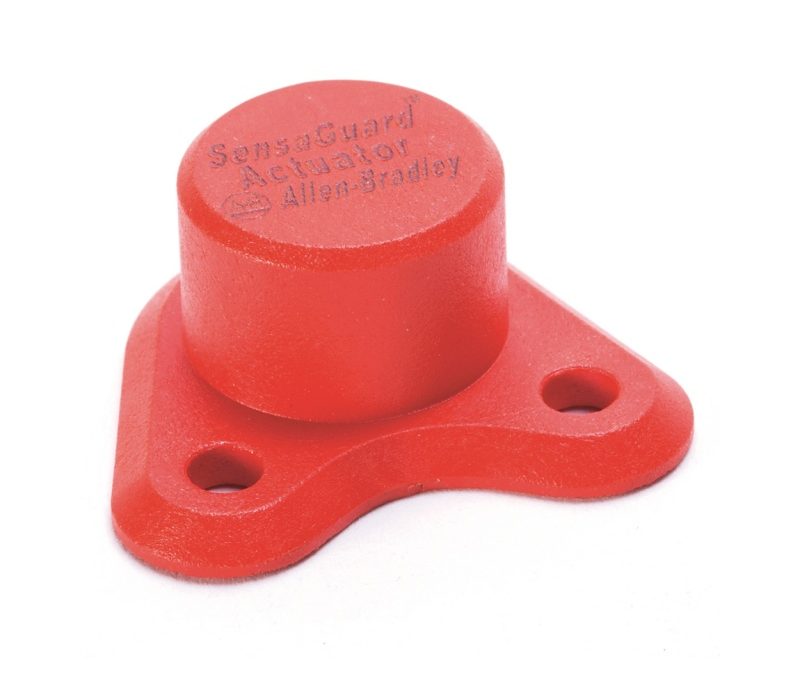

440N-Z18PT Allen-Bradley Standard Code Actuator

Standards IEC 60947-5-3, IEC 61508, EN 954
Safety Classification Cat. 4/SIL3
Functional Safety Data ✶
Note: For up-to-date information,
visit http://www.ab.com/Safety/
PFHD: > 1.12 x 10-9
MTTFd: > 385 years
Dual channel interlock may be suitable
for performance levels PLe or PLd
(according to ISO 13849-1:2006) and for
use in SIL2 or SIL3 systems (according
to IEC 62061) depending on application
characteristics
Certifications CE Marked for all applicable directives,
cULus (UL 508), and TÜV
Outputs (Guard Door Closed, Actuator in Place)
Safety Outputs 2 x PNP, 0.2 A, max.; Status: ON (+24V
DC)
Auxiliary Outputs 1 x PNP, 0.2 A max.; Status: OFF (0V
DC)
Operating Characteristics
Sensing Distance (Assure)
18 mm Plastic
Barrel/18 mm Target
15 mm
(0.59 in.)
18 mm Plastic
Barrel/30 mm Target
25 mm
(0.98 in.)
18 mm Stainless Steel
Barrel/Standard Target
10 mm
(0.39 in.)
Large Rectangular Flat
Pack with Standard Target
15 mm
(0.59 in.)
Misalignment Tolerance, Min See misalignment curve
Repeat Accuracy 10% of Sensing Range
Output Current, Max. 200 mA (all outputs)
Operating Voltage 24V DC, +10%/-15%
Class 2
Current Consumption 50 mA
Frequency of Operating Cycle 1 Hz
Response Time (Off) 54 ms
Environmental
Enclosure Type Rating NEMA 3, 4X, 12, 13, IP69K
Operating Temperature [C (F)] -10…+55° (+14…+131°)
Relative Humidity 5…95%
Shock IEC 68-2-27, 30 g, 11 ms
Vibration IEC 68-2-6 10…55 Hz
Radio Frequency IEC 61000-4-3, IEC 61000-4-6
Physical Characteristics
Housing Material VALOX® DR 48
Actuator Material VALOX® DR 48
Color Red
