| product brand name |
SENTRON |
| product designation |

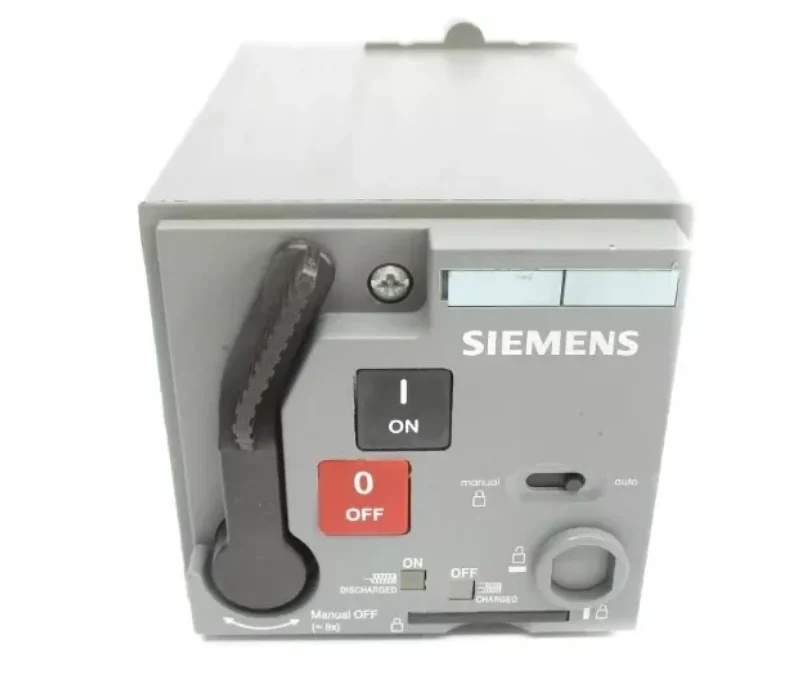

Motorized operating mechanism with stored energy mechanism |
| design of the product |
Accessories for VL160X; VL160; VL250 |
| type of the driving mechanism |
Motorized operating mechanism with spring energy store |
| operating frequency maximum |
120 1/h |
| fuse protection type for external auxiliary power supply required |
NEOZED fuse (gL/gG): 6 A / miniature circuit breaker, C char.: 6 A |
| operating range factor control supply voltage rated value |
|
| • at DC initial value |
0.85 |
| • at DC full-scale value |
1.1 |
| • at AC at 50 Hz initial value |
0.85 |
| • at AC at 50 Hz full-scale value |
1.1 |
| • at AC at 60 Hz initial value |
0.85 |
| • at AC at 60 Hz full-scale value |
1.1 |
| protection class IP |
IP30 |
| operating apparent power |
100 VA |
| control supply voltage |
|
| • at DC rated value minimum |
24 V |
| • at DC rated value maximum |
24 V |
| pulse duration minimum |
50 ms |
| stripped length |
10 mm |
| connectable conductor cross-section solid |
|
| • minimum |
0.75 mm² |
| • maximum |
1.5 mm² |
| connectable conductor cross-section stranded |
|
| • minimum |
0.75 mm² |
| • maximum |
1.5 mm² |
| connectable conductor cross-section finely stranded with core end processing |
|
| • minimum |
0.75 mm² |
| • maximum |
1.5 mm² |
| tightening torque |
|
| • minimum |
1 N·m |
| • maximum |
1.2 N·m |
| height |
103 mm |
| width |
98 mm |
| depth |
166 mm |
| net weight |
2 755 g |
| ambient temperature during operation |
|
| • minimum |
-25 °C |
| • maximum |
70 °C |
| ambient temperature during storage |
|
| • minimum |
-40 °C |
| • maximum |
80 °C |
| reference code according to IEC 81346-2 |
M |
Siemens
