Siemens

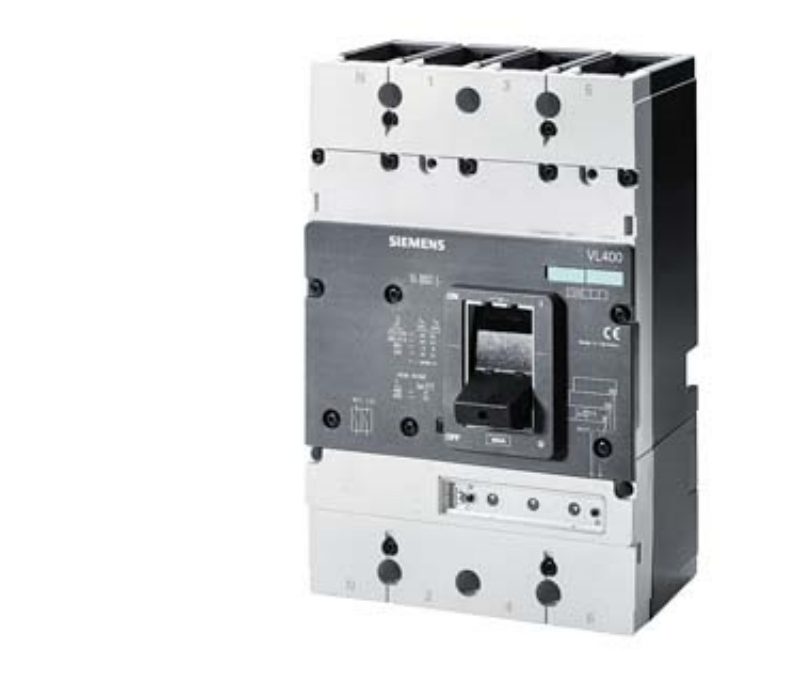

3VL4740-1AA36-0AA0 siemens circuit breaker
Model: 3VL4740-1AA36-0AA0 siemens circuit breaker
Model Type of the driving …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Model
Type of the driving mechanism / motor drive No
General technical data
Number of poles 3
Size of the circuit-breaker 3VL4
Electrical endurance (switching cycles) / typical 10 000
Usage category A
Performance class for circuit breaker N
Mechanical service life (switching cycles) / typical 20 000
Equipment marking / acc. to DIN 40719 extended
according to IEC 204-2 / acc. to IEC 750
Q
Operating frequency / maximum 1/s 120
Voltage
Rated operational voltage Ue / max. V 690
Insulation voltage
?? Rated value V 800
?? with AC / Rated value V 800
Surge voltage resistance / Rated value kV 8
Protection class
Protection class IP IP20
Electricity
Continuous current / Rated value A 400
Derating temperature / for the rated value of the
continuous current
??C 50
Height mm 279.5
Width mm 139
Depth mm 163.5
Mounting type fixed mounting
